aRacer RC SuperX Complete ECU Aerox155/NVX155 '17-20 Motorcycle

[KN企画 PA-SGM04 aRacer RC SuperX Complete ECU for Aerox 155/NVX155 '17-20 Motorcycle]
■aRacer [RC SuperX Complete ECU]

Specifications
The latest version of the tuning ECU essential for injection tuning! aRacer RC SuperX.

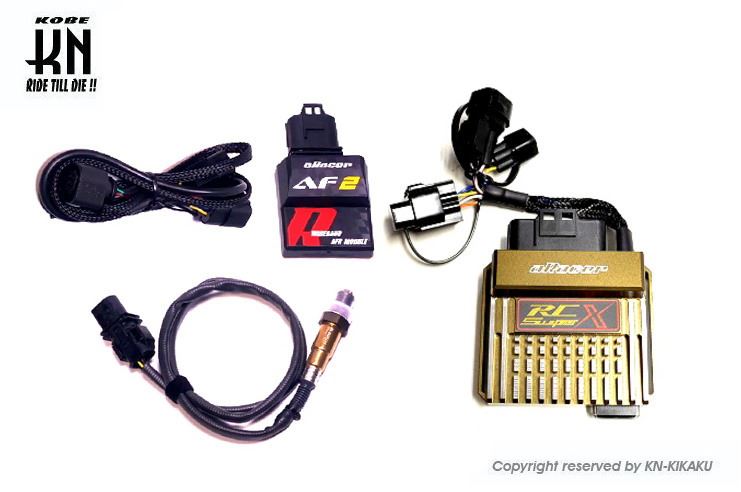

This kit is a set of a vehicle-specific full-control ECU unit and an AF2 O2 sensor module.
Since AF2 is included, creating fuel maps is very easy with the auto-tune function.
High-performance compensation (closed-loop compensation) functions, quickly adapting to changes in atmospheric pressure and temperature.
Data log trajectories can be displayed on a map, allowing for smooth adjustments.

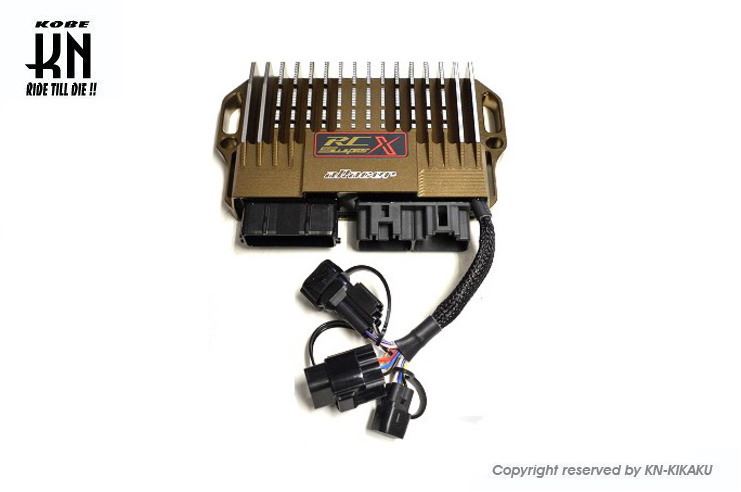

The ECU unit is a plug-and-play replacement for the genuine unit.
Vehicle-specific base maps are provided, allowing for smooth setup.
The ECU unit has built-in Wi-Fi, enabling wireless communication.
Simple adjustments are possible by downloading a smartphone app.
[Evolution from Super2]

The MCU is now 6-core, significantly improving processing speed. Control accuracy is more precise.
The exterior design has changed, further improving heat dissipation.
Wireless connection is now Wi-Fi, greatly increasing file transfer speed!
Logging capacity increased by 33% with increased internal memory.
The PC software SpeedTuningX has improved usability. Functions have been added based on feedback from KN Kikaku's experience to better suit the usage conditions of Japanese customers.
The scale values for fuel maps and ignition timing maps can now be arbitrarily set, allowing for more detailed settings at frequently used RPMs.
In addition to the conventional method, auto-tune can now be performed using a map with graph vertical memory TPS%, further improving usability.
■Compatible models
AEROX155/NVX155 [2017-2020]

*The ECU differs depending on the model year.
Set contents
RC SuperX ECU unit x 1
Dedicated app aRacer X Tune Japanese manual (downloadable version)
Precautions
*ECU tuning should be performed by experienced individuals with knowledge. Incorrect settings can cause engine damage.
*A PC and internet connection environment are required. Dedicated software SpeedTuningX is used for settings.
*The dedicated app aRacer X Tune can be used for simple settings, but
iOS (iPhone) is recommended. Android may not connect depending on the model.
*For wired connections, conventional iLink cables cannot be used. Please use a dedicated ProLink cable.
*Simultaneous use with an AF2 O2 sensor module is recommended.
*For vehicles with TCS, the operation method will differ from genuine, and settings can be made on the ECU.
*Yamaha genuine app Y-Connect cannot be used.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
