aRacer RC SuperX Complete ECU Aerox 155/NVX 155 '21 Motorcycle

【KN Planning PA-SGM05 aRacer RC SuperX Complete ECU Aerox155/NVX155 '21 Motorcycle】

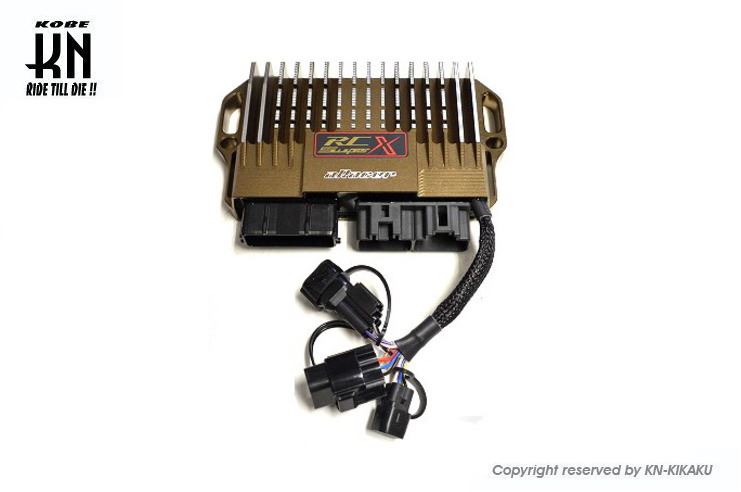

■aRacer【RC SuperX Complete ECU】

Specifications
The latest version of the tuning ECU, essential for injection tuning! aRacer RC SuperX.
This kit is a set of a vehicle-specific full-control ECU main unit and an AF2 O2 sensor module.
Since AF2 is included, creating a fuel map is very easy with the auto-tune function.
High-performance correction (closed-loop correction) functions, quickly following changes in atmospheric pressure and temperature.
The data log trajectory can be displayed on a map, allowing for smooth adjustments.
The ECU main unit is a coupler-on replacement for the genuine one.
Vehicle-specific base maps are available, allowing for smooth setup.
The ECU main unit has built-in Wifi for wireless communication.
Simple adjustments are also possible by downloading the smartphone app.
【Evolution from Super2】

The MCU has 6 cores, significantly improving processing speed. Control accuracy becomes finer.
The exterior design has changed, and heat dissipation has improved.
Wireless connection is Wifi, significantly increasing file transfer speed!
33% increased main memory capacity allows for logging.
The PC software SpeedTuningX has improved usability. KN Planning's experience has been fed back to add functions that better suit the usage conditions of Japanese customers.
The graph scale values for the fuel map and ignition timing map can now be set arbitrarily, allowing for more detailed settings for frequently used RPMs.
In addition to the conventional method, auto-tune can now be performed with a map using the graph vertical axis TPS%, further improving usability.
■Compatible models
AEROX155/NVX155 [2021~]

*The ECU differs depending on the model year.
Set contents
RC SuperX ECU main unit x 1
Dedicated app aRacer X Tune Japanese instruction manual (downloadable version)
Precautions
*ECU tuning should be performed by a knowledgeable and skilled person. Incorrect settings can cause engine damage.
*A PC and internet connection are required. The dedicated software SpeedTuningX is used for setting.
*The dedicated app aRacer X Tune can be used for simple settings, but
iOS (iPhone) is recommended. Android devices may not be able to connect depending on the model.
*For wired connections, conventional iLink cables cannot be used. Please use the dedicated ProLink cable.
*Simultaneous use with the AF2 O2 sensor module is recommended.
*For vehicles with TCS, the operation method will be different from the genuine one, and settings can be made on the ECU.
*Yamaha's genuine app Y-Connect cannot be used.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
