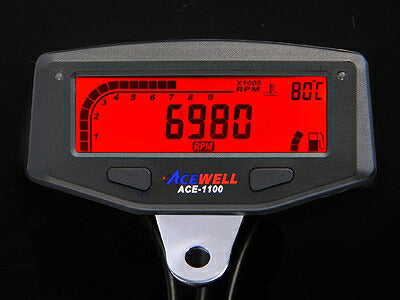

Multi-function Digital Meter Tachometer

[ACEWELL ACE-1100 Multi-functional Digital Meter Tachometer ACEWELL ACE-1100 ace-1100] The ACE1100 does not include a speedometer function. ACEWELL Multi-functional Digital Meter ACE-1100 Type Product Overview The display can simultaneously show a bar graph tachometer, a digital tachometer, a bar graph fuel gauge, and one other function value. The maximum display RPM of the bar graph tachometer can be switched between 10,000 rpm and 20,000 rpm to match engine characteristics. Equipped with two maintenance reminders. Power can be supplied by either a CR2032 lithium battery or the vehicle's battery. The fuel sender resistance value of the fuel gauge can be switched to +/-100, 250, or 510Ω, and a fuel gauge OFF function is also included. Maintenance Reminder Equipped with two maintenance reminders. It counts down from the time set in set mode to notify you when maintenance is due. Even if maintenance is performed before it reaches "0", resetting it will restore the initial set value. The two systems operate completely independently. Size: 110mm x 55mm x 22.5mm Accessories Mounting bracket, ignition signal sensor cable, temperature sensor, wire harness Functions Bar graph tachometer (full scale switchable between 10,000 rpm and 20,000 rpm) Digital tachometer (full scale 19,900 rpm) Shift warning function (with built-in dedicated LED) Water/oil temperature gauge (1 system - bar graph & digital display) Temperature warning function (with built-in dedicated LED) Fuel gauge (can be turned OFF) Engine operating time / total engine operating time Maximum RPM / maximum temperature memory Digital clock Voltmeter *Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
