Multi-function Digital Meter Speedometer Tachometer

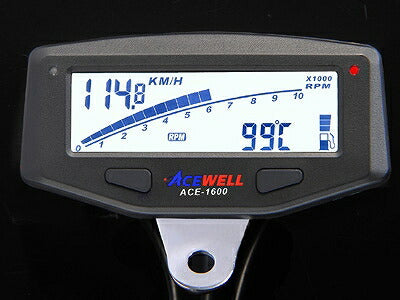

[ACEWELL ACE-1600 Multi-function Digital Meter Speedometer Tachometer ACEWELL ACE-1600]
The display features a bar graph tachometer and a digital tachometer.
It can simultaneously display the bar graph fuel gauge and one other function.
The maximum display RPM for the bar graph tachometer can be switched to 10,000rpm or 20,000rpm to match engine characteristics.
Equipped with a lap timer that can record up to 99 laps and a wired remote control for its operation.
The odometer can be changed to any user-defined value only if it is less than 30km (18.6 miles).
The fuel sender resistance for the fuel gauge can be switched to +/-100, 250, or 510Ω, and a fuel gauge OFF function is also included.
Size: 110mm x 55mm x 22.5mm
Accessories
Mounting bracket, ignition signal sensor cable, temperature sensor, wire harness
*Speed sensor (a sensor that converts the rotation of a mechanical cable into an electrical signal) is sold separately.
For vehicles without a meter cable, please purchase an optional magnetic sensor separately.
Functions
Speedometer (full scale 399.9 km/h)
Odometer (initial value can be set to any kilometer by the user)
Trip meter
Bar graph tachometer (full scale 10000rpm/20000rpm switchable)
Digital tachometer (full scale 19999rpm)
Shift warning function (built-in dedicated LED)
Water/oil temperature gauge (1 system, bar graph & digital display)
Temperature warning function (built-in dedicated LED)
Fuel gauge (can be turned OFF)
Voltmeter
Maximum speed, maximum RPM, maximum temperature memory
Average speed calculation
Digital clock
Total & riding time
Lap timer (can measure up to 99 laps)
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
