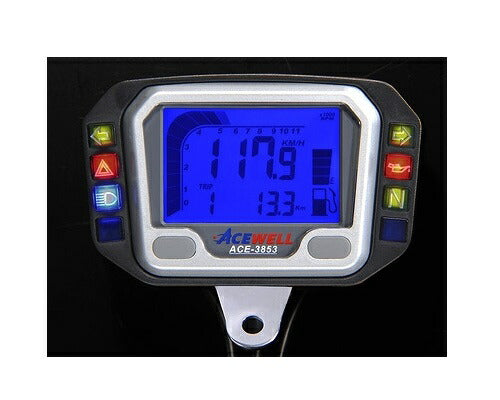

Digital meter (100Ω) speedometer tachometer

【ACEWELL ACE-3853L Digital Meter (100Ω) Speedometer Tachometer ACEWELL ACE-3853L】
The ACE-3853 type is an upgraded version of the ACE-3803, with an added fuel gauge.
It displays the remaining fuel in an 8-segment bar graph.
We offer both 510Ω and 100Ω types.
Please note: The fuel gauge will not function if installed on vehicles that do not have a genuine fuel gauge equipped.
With dimensions of 78mm × 125mm × 28.5mm, it boasts a sharp styling!
The main unit features a completely waterproof mechanism and shock protection against 10G vibrations and 100G impacts, making it ideal for use in harsh conditions such as off-road! It comes standard with a wire sensor that measures the rotation of the meter wire, eliminating the need for troublesome magnetic sensors.
It can be easily replaced in the same way as a normal meter replacement.
Even on vehicles where the wheel diameter has been changed for customisation, accurate speed display is possible simply by adjusting the meter settings.
The tachometer can be set to work not only with single-cylinder but also multi-cylinder vehicles.
It allows for bar graph display up to 11000rpm and digital display up to 19900rpm.
It condenses necessary functions such as two trip meters, an odometer, a runtime meter, average speed display, maximum RPM memory, maximum speed memory,
RPM warning function, and clock function into a compact size.
The illumination is blue LED, providing clear visibility even at night!
Installation is convenient with a dedicated bracket included.
12V only
Accessories
Mounting bracket, signal sensor cable, wire harness
*The speed sensor (a sensor that converts the rotation of a mechanical cable into an electrical signal) is sold separately.
For vehicles without a meter wire, please purchase an optional magnetic sensor separately.
Please confirm before purchase
Many basic motorcycle fuel meters display the remaining fuel by changing the resistance value of the fuel sender (level sensor) inside the fuel tank according to the amount of remaining fuel.
The resistance value of this fuel sender varies depending on the vehicle model.
We offer two types: a 510Ω type, which is commonly used by Honda and has a resistance value of 510Ω when the fuel level is 0, and a 100Ω type, which is commonly used by Yamaha and Suzuki and has a resistance value of 100Ω when the fuel level is 0.
However, some vehicle models and years may use fuel senders with resistance values other than these two types.
A significant difference in resistance value may cause a large error in the fuel meter.
Before purchasing the product, please check the fuel sender resistance value of the vehicle you plan to install it on, and select the meter with the appropriate resistance value for your vehicle.
If the resistance values differ, please choose a product with the closest resistance value after understanding that an error may occur, or
please choose a product without a fuel meter.
After installing the product, please check whether the fuel meter's operation matches the actual fuel level,
and use it for 2-3 tankfuls while observing its behavior.
Resistance value: 100Ω
*The image is for illustration purposes only, and the design and specifications of the product shown may change without prior notice. Please be aware.
