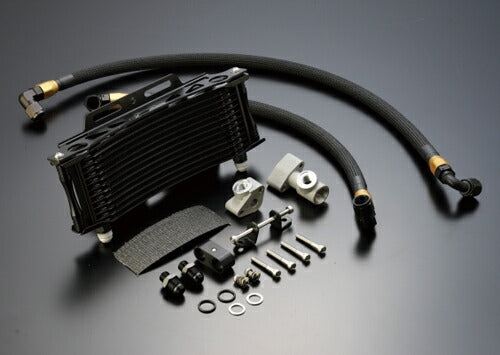

Oil Cooler Kit, Round, Thermostat-Compatible, Black, #8, Side-Mounted, 9 inch 13 row, Z1/Z2/Z750FX-1/Z1000MK2

【EARLS 14037413BC Oil Cooler Kit, Round, Thermo-Compatible, Black, #8, Side Routing, 9-Row 13-Stage, Z1/Z2/Z750FX-1/Z1000MK2】
・The Active Earl's Round Oil Cooler pursues lightness, compactness, and high performance. Not only the fittings, but also the core itself uses the trusted and proven Earl's brand. Experience thinness, lightness, and high performance. A wide range of core sizes, colors, and other options are available. Please choose according to the vehicle you are installing it on.
・Core: Earl's
・Hose: Earl's
・Fittings: Earl's
・Vehicle-specific bracket: Active
●Photos may differ from the actual product.
●Install the oil line so that it does not come into contact with the engine or muffler.
●Settings are based on the standard muffler.
●We recommend replacing the tachometer cable as it may come into contact.
●For thermostat kits, a separate thermostat body is required.
●When installing a thermostat, please ensure sufficient clearance with the vehicle body.
Specifications:
・Color: Black
・Hose routing: Side routing
・Hose size: #8
・Core size: 9-inch 13-stage
・Thermostat kit: Included
・Hose set fitting data: Core left: Thermostat left = 90°-ST / Core right: Thermostat = 45°-ST / Engine left: Thermostat = 90°: ST / Engine left: Thermostat = 45°: ST
Compatible models:
・KAWASAKI Z1
・KAWASAKI Z1000MK2
・KAWASAKI Z2
・KAWASAKI Z750FX-1
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
