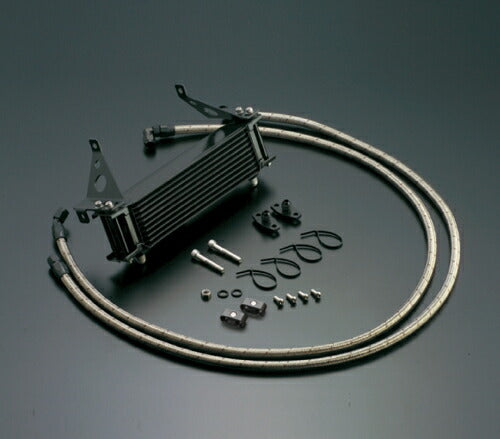

Oil Cooler Kit Straight Thermo-compatible Black #6 Side Mount 9-Row 13-Stage CBR400F

【EARLS 14052213BC Oil Cooler Kit, Straight, Thermo-compatible, Black, #6 Side Routing, 9-inch 13-stage, CBR400F】
・The oil cooler kit is designed specifically for each vehicle model, with custom-designed oil line outlets and mounting stays for the vehicle body. The kit also includes oil lines of optimal length for each vehicle model, improving installation efficiency and reducing unnecessary costs.
・With a wide range of options, including side routing, core size, two color lineups (silver/black), and optional parts such as thermostats, it can accommodate various custom plans. To maintain quality, all parts undergo processes such as pressure resistance tests and are assembled into kits by specialized staff.
・Core: Setrab
・Hose: Earl's
・Fitting: Earl's
・Vehicle-specific stay: Active
●Photos may differ from the actual product.
●Please install the oil line so that it does not come into contact with the engine or muffler.
●Settings are based on the normal muffler.
●Relocation of the normal horn is required.
●Installation of the thermostat kit requires a separate thermostat body.
●When installing a thermostat, please ensure sufficient clearance with the vehicle body.
Specifications:
・Color: Black
・Hose routing: Side routing (Core mounting position: Down frame)
・Hose size: #6
・Core size: 9-inch 13-stage
・Thermo kit: Yes
・Hose set fitting data: Long: 90°-45° / Short: 90°-Straight
Compatible models:
・HONDA CBR400F
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
