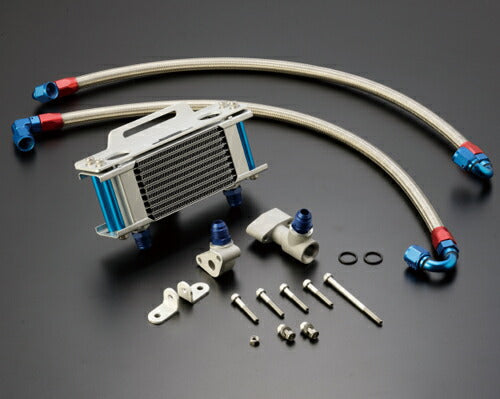

Oil Cooler Kit Straight Silver (Heat-Resistant Hose Cover) #8 Top Mount 4.5 inch 10-row Z1/Z2/Z750FX-1/Z1000MK2

【EARLS 14057710 Oil Cooler Kit Straight Silver (Heat-Resistant Hose Cover) #8 Up-Route 4.5 inch 10-row Z1/Z2/Z750FX-1/Z1000MK2】
・Oil cooler kits, which are set specifically for each vehicle model, feature oil line outlets and mounting stays designed specifically for that model. The kit also includes oil lines of the optimal length for each vehicle model, improving work efficiency during installation and reducing unnecessary expenses.
・With a wide range of choices, such as side routing, core size, two color options (silver/black), and optional parts like thermostats, the kit can accommodate a variety of custom plans. To maintain quality, all parts undergo processes such as pressure resistance inspections and are assembled into kits by specialized staff.
・Core: Setrab
・Hose: Earl's
・Fitting: Earl's
・Vehicle-specific stay: Active
●Photos may differ from the actual product.
●Genuine cam tensioner cannot be installed.
●The hose is routed directly from above between the insulators (confirmed for Z1 early model carburetor)
●Install oil lines so they do not come into contact with the engine or muffler.
●Designed based on standard muffler.
●Front fender will come into contact during full bottoming, so fender cutting is required.
Specifications:
・Hose routing: Up-route
・Hose size: #8
・Core color: Silver (with heat-resistant hose cover)
・Core size: 4.5 inch 10-row
・Hose set fitting data: Long: 150°－90°／Short: 150°－120°
Compatible models:
・KAWASAKI Z1
・KAWASAKI Z1000MK2
・KAWASAKI Z2
・KAWASAKI Z750FX-1
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
