Oil Cooler Kit Straight Black (Heat Resistant Hose Cover) #6 Upper Front 9-inch 13-stage Z1/Z2/Z750FX-1/Z1000MK2

[EARL'S 14058913B Oil Cooler Kit, Straight, Black (Heat-Resistant Hose Cover) #6, Up-Front Routing, 9-inch 13-row, Z1/Z2/Z750FX-1/Z1000MK2]
・This vehicle-specific oil cooler kit features specially designed oil line outlets and mounting stays for the vehicle body. The kit also includes oil lines of optimal length for each vehicle model, improving installation efficiency and reducing unnecessary expenses.
・With a wide range of choices, including side routing, core sizes, two color options (silver/black), and optional parts like thermostats, it can accommodate various custom plans. To maintain quality, all parts undergo pressure resistance tests and other processes, and are assembled into kits by specialized staff.
・Core: Setrab
・Hose: Earl's
・Fittings: Earl's
・Vehicle-specific stays: Active

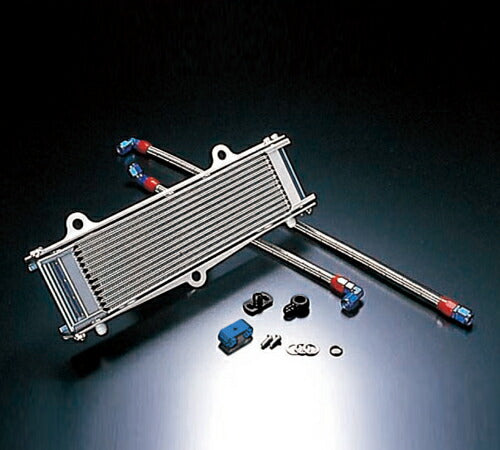

●Photos may differ from the actual product.
●The genuine cam tensioner cannot be installed.
●The hose is routed directly above between the insulators (installation confirmed on early Z1 carburetors).
●Install the oil line so that it does not come into contact with the engine or muffler.
●Designed based on the standard muffler.
●The fender needs to be cut because it will come into contact with the front fender at full bottom.
Specifications:
・Hose routing: Up-front
・Hose size: #6
・Core color: Black (heat-resistant hose cover specification)
・Core size: 9-inch 13-row
・Hose set fitting data: Long: 90°-120° / Short: 90°-90°
Compatible models:
・KAWASAKI Z1
・KAWASAKI Z1000MK2
・KAWASAKI Z2
・KAWASAKI Z750FX-1
Notes on images:
*Other parts are also included in the photos.
*Actual colors may differ.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without prior notice. Please understand.
