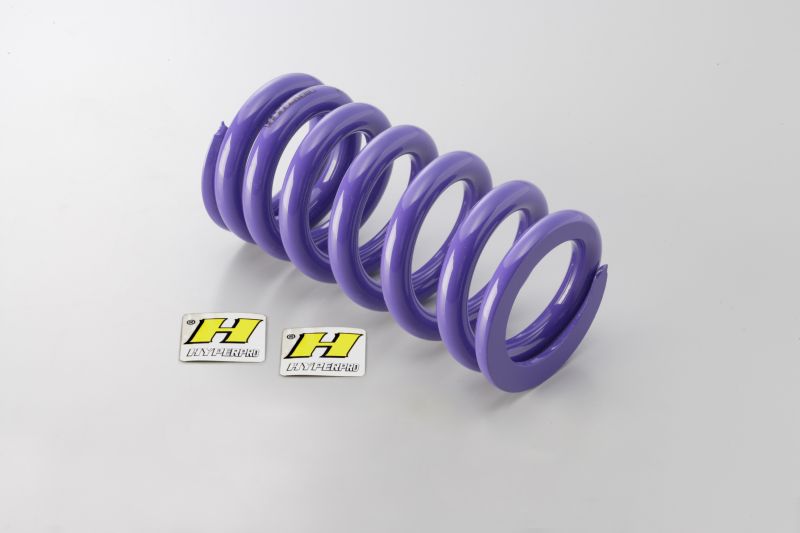

Rear Spring Lowering approx. 30mm CBR1000RR

【HYPERPRO Hyperpro 22012881 Rear Spring Lowdown Approx. 30mm CBR1000RR Suspension】
■Rear Spring
Hyperpro's unique lowdown spring lowers the vehicle height by changing the spring rate and adjusting the oil level, without significantly altering the free length of the spring.
Enjoy the smooth ride of the constant rising rate, which absorbs impacts flexibly and provides firm support deeper in the stroke.
Compatible models
HONDA CBR1000RR '04-'05
Specifications
Lowdown: Approx. 30mm
Spring material number: 1327
Preload adjustment: POS 1-2
Sag value: 40mm
Compression adjustment: 15-18 clicks out
Rebound adjustment: 3 turns out +/- 0.5
Setting remarks: Fork preload weakest / Fork sag 35-40mm.
*When using the side stand, park the vehicle on a flat surface in first gear. (Due to the lowdown, the vehicle will be more upright than normal.)
*After installation, the vehicle's balance will change significantly. Always adjust the front and rear settings before riding.
*Lowdown parts are considered designated parts, so no structural modification procedures are required.
*For lowdowns of 30mm or more, a short side stand may be necessary depending on the vehicle's condition. For models with adjustable preload, adjust the lowdown amount to a level where the side stand can be used while making settings.
*The image is for illustrative purposes only, and the design and specifications of the products shown may change without prior notice. Thank you for your understanding.
