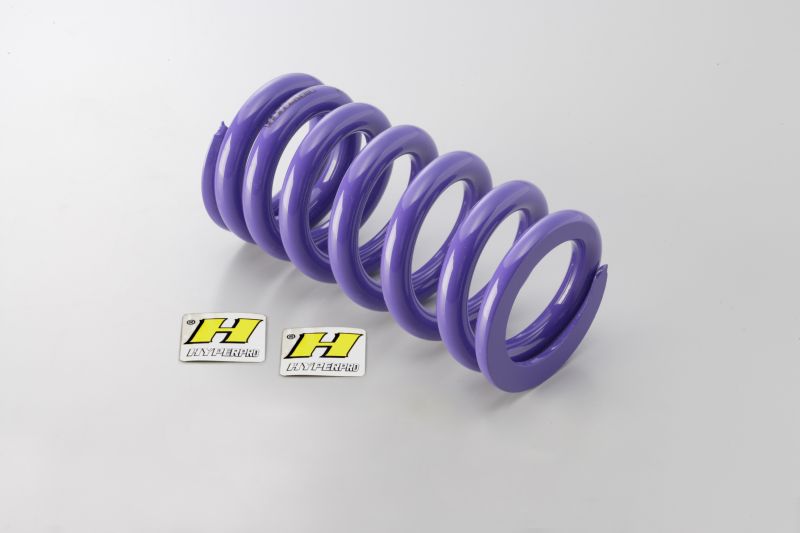

Rear spring, approximately 25mm lower, CRF1000L

【HYPERPRO Hyperpro 22013281 Rear Spring Low Down approx. 25mm CRF1000L Suspension】
■Rear Spring
A low-down spring unique to Hyperpro that lowers the ride height by changing the rate and adjusting the oil level without significantly changing the free length of the spring.
Enjoy the smooth ride of the constant rising rate, which absorbs impacts flexibly and provides firm support when fully compressed.
The front spring comes with the necessary amount of fork oil.
Compatible models
HONDA CRF1000L Africa Twin Adventure Sports '18-'19 (DTC compatible)
Specifications
Low down: approx. 25mm
Spring material number: 1724
Preload adjustment: HPA weakest
Sag value: 80mm
Compression adjustment: 15 clicks out
Rebound adjustment: 1.5 turns out
Setting notes: Install with the tapered end facing the hydraulic preload adjuster.
*When using the side stand, park on a flat surface with the bike in first gear. (Due to the low down, the bike will be more upright than normal)
*The vehicle balance changes significantly after installation. Always adjust the front and rear settings before riding.
*Low-down parts are considered designated parts, so no procedure for structural modification is required.
*For low-down of 30mm or more, a short side stand may be required depending on the vehicle condition. For models with adjustable preload, please adjust the setting while ensuring that the side stand can be used at the low-down amount.
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Thank you for your understanding.
