Rear spring, approx. 25mm lower, CRF1100L

【HYPERPRO Hyperpro 22013421 Rear Spring, Approx. 25mm Lowering, CRF1100L Suspension】

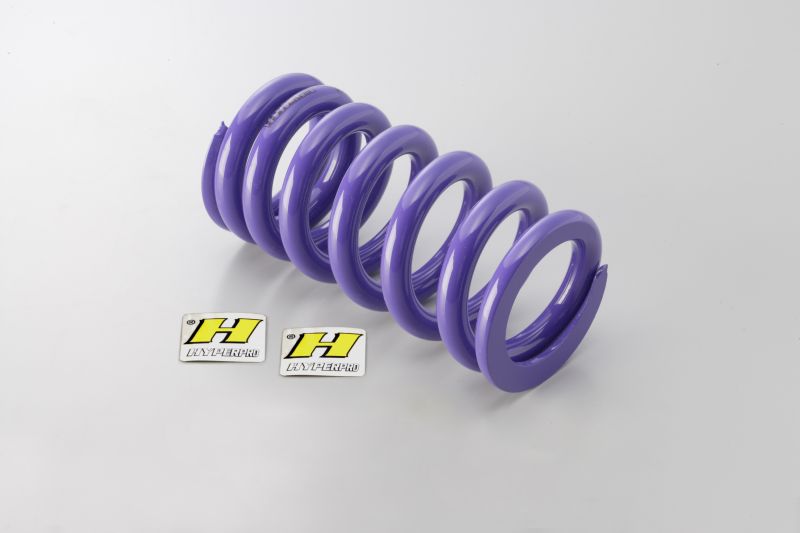

■Rear Spring
This lowering spring, unique to Hyperpro, lowers the vehicle height by changing the spring rate and adjusting the oil level, without significantly altering the free length of the spring.
Enjoy the smooth ride of a constant rising rate spring, which absorbs shocks flexibly and provides firm support when compressed.
The front spring comes with the necessary amount of fork oil.
Compatible models
HONDA CRF1100L Africa Twin Adventure Sports '20-'22 (ES/DCT compatible)
Specifications
Lowering: Approx. 25mm
Spring Part Number: 1724
Preload Adjustment: Weakest
Sag Value: 80mm
Compression Adjustment: EERA
Rebound Adjustment: EERA
Setting Notes: Install with the narrower inner diameter facing the HPA side.
*When using the side stand, park on a flat surface with the bike in first gear. (Due to the lowering, the bike will be more upright than with the normal suspension.)
*The balance of the bike will change significantly after installation. Always adjust the front and rear settings before riding.
*Lowering parts are considered designated components, so no structural modification procedures are required.
*For lowering of 30mm or more, a short side stand may be necessary depending on the bike's condition. For models with preload adjustment, adjust the preload to a lowering amount where the side stand can be used.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware.
