Front Spring TDM900

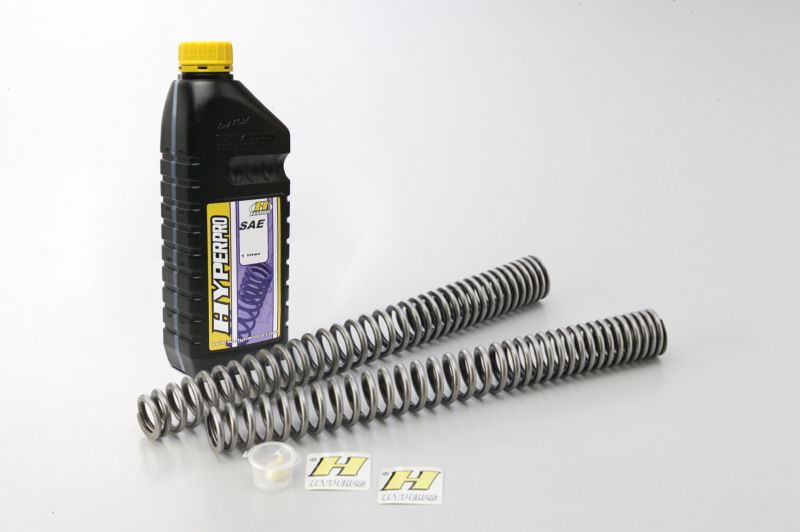

【HYPERPRO 22031390 Front Spring TDM900 Suspension Fork Spring】
■Front Spring
Suspension spring with a constant rising rate, uniquely designed by Hyperpro.
The spring rate constantly changes to follow the movement of the suspension.
It maintains a state that is neither too soft nor too hard, and also has the ability to maintain stability during high-load cornering and sudden braking.
●Optimizes the change in caster during braking before a corner, making it easier to transition to the next action. Absorbs small bumps during cornering, eliminating vibrations that hinder the rider.
●Unlike ordinary springs, it does not have a constant spring rate, so it does not resonate.
●Springs wound by computer-controlled machine tools are shot-peened to remove microscopic surface scratches that could lead to performance degradation. Furthermore, after completion, each spring undergoes a performance test by a tester.
●In the Netherlands, Hyperpro's home country, all emergency motorcycles are equipped with Hyperpro springs.
Compatible Models
YAMAHA TDM900 '02-'03
Specifications
Spring Part Number: 169
Fork Oil Viscosity/Oil Level: SAE20/150mm
Preload Adjustment: 3 +/- 2nd stage
Sag Value: 30mm
Compression Adjustment: None
Rebound Adjustment: PO. 2 +/- 1
Setting Remarks: Remove the genuine preload bush L=150. Install with fork protruding 25mm.
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
