Rear spring, approximately 30mm lowering, MT-01

【HYPERPRO Hyperpro 22031491 Rear Spring Lowering approx. 30mm MT-01 Suspension】

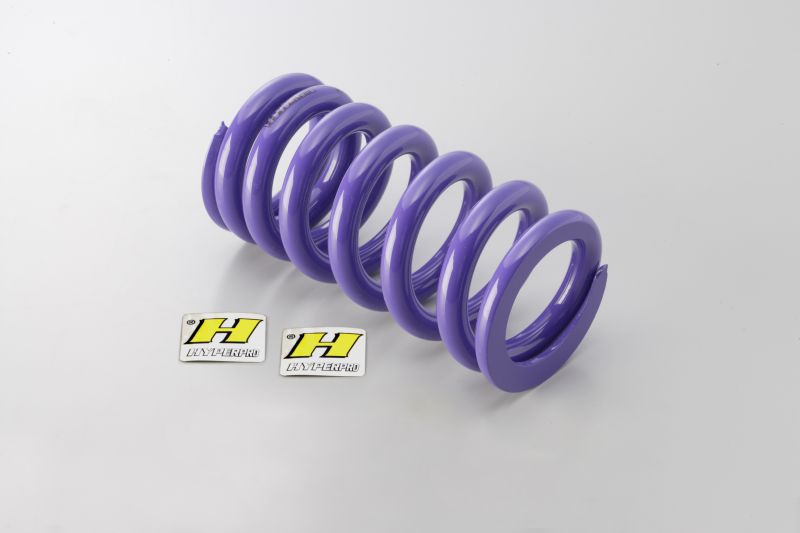

■Rear Spring
Hyperpro's unique lowering spring reduces vehicle height by changing the spring rate and adjusting the oil level, without significantly altering the spring's free length.
Enjoy the smooth ride of the constant rising rate, which softly absorbs shocks and maintains stability deeper into the stroke.
Compatible models
YAMAHA MT-01 '05-'09
Specifications
Lowering: approx. 30mm
Spring part number: 179
Preload adjustment: 4mm
Sag value: 42mm
Compression adjustment: 4-5 clicks out
Rebound adjustment: 8 clicks out
Setting notes: 12 clicks out.
*When using the side stand, park on a flat surface with the transmission in first gear. (The vehicle will be more upright than with the stock setup due to the lowering.)
*After installation, the vehicle's balance will change significantly. Always adjust the front and rear settings before riding.
*Lowering parts are designated components, so no structural modification procedures are required.
*For lowering of 30mm or more, a short side stand may be necessary depending on the vehicle's condition. For models with adjustable preload, please adjust the settings while ensuring the side stand can be used with the lowered height.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without notice. Please be aware.
