Front Spring Lowering approximately 20mm T-MAX560

【HYPERPRO Hyperpro 22032560 Front Spring Lowering approximately 20mm T-MAX560 Suspension Fork Spring】
■Front Spring

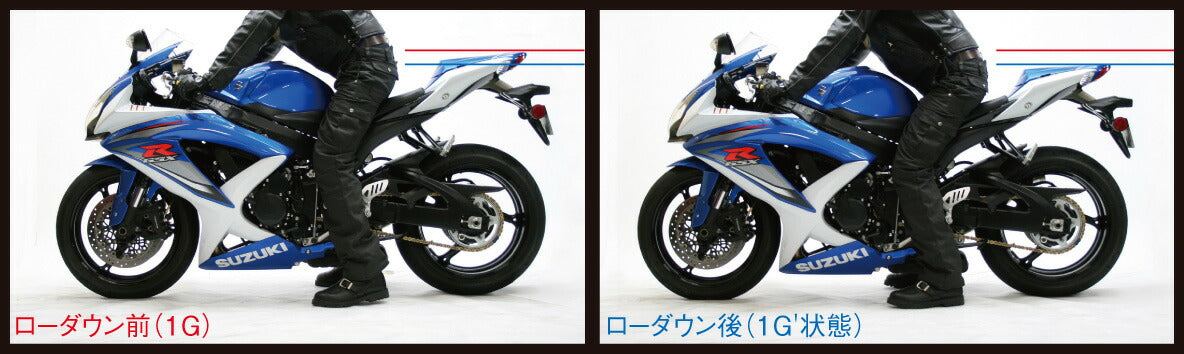

Hyperpro's unique lowering spring reduces vehicle height through rate changes and oil level adjustments, without significantly altering the free length of the spring.
Enjoy a smooth ride with constant rising rate that gently absorbs impacts and provides strong support deeper in the stroke.
The front spring includes the necessary amount of fork oil.
Compatible models
YAMAHA T-MAX560 '20 (TECHMAX only)
Specifications
Lowering: Approximately 20mm
Spring material number: 1138
Fork oil viscosity/oil level: SAE15/90mm
Preload adjustment: No adjustment
Sag value: 35mm
Compression adjustment: No adjustment
Rebound adjustment: No adjustment
Setting notes: Install the fork with a 5mm protrusion.
*When using the side stand, park on a flat surface in first gear. (Due to lowering, the vehicle will be more upright than normal.)
*After installation, the vehicle balance will change significantly. Always adjust the front and rear settings before riding.
*Lowering parts are considered designated parts, so no structural modification procedures are required.
*For lowering by 30mm or more, a short side stand may be required depending on the vehicle condition. For models with adjustable preload, set the preload while adjusting to a lowering amount that allows the side stand to be used.
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without notice. Please be aware of this.
