Front Spring Lowering approximately 20mm MT-09

【HYPERPRO Hyperpro 22032580 Front Spring, Low Down Approx. 20mm, MT-09 Suspension Fork Spring】
■Front Spring
This is Hyperpro's unique lowdown spring, which lowers the vehicle height by changing the rate and adjusting the oil level without significantly altering the free length of the spring.
Enjoy a smooth ride with the constant rising rate that gently absorbs impacts and holds its ground deep in the stroke.
The front spring comes with the necessary amount of fork oil.
Compatible models
YAMAHA MT-09(ABS) '21
Specifications
Lowdown: Approx. 20mm
Spring part number: 1855
Fork oil grade/oil level: SAE 7.5/ 120mm
Preload adjustment: 5th stage
Sag value: 45mm
Compression adjustment: 10 clicks out
Rebound adjustment: 10 clicks out
Setting notes: Install with the tapered end up. Install the fork with a 15mm protrusion.

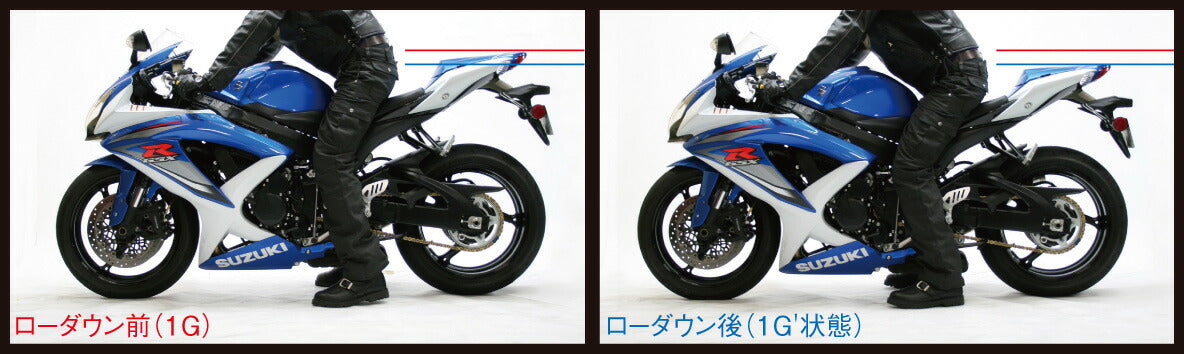

*When using the side stand, park on a flat surface in first gear. (The vehicle will be more upright than normal due to the lowdown.)
*After installation, the vehicle's balance will change significantly. Always adjust the front and rear settings before riding.
*Lowdown parts are considered designated parts, so no structural modification procedures are required.
*For lowdowns of 30mm or more, a short side stand may be necessary depending on the vehicle's condition. For models with preload adjustment, adjust the setting while ensuring the side stand can be used at the lowdown amount.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
