Front spring lowdown approx. 15mm GSX1300R

【HYPERPRO 22051710 Front Spring Lowdown approx. 15mm GSX1300R Suspension Fork Spring】
■Front Spring
Hyperpro's unique lowdown springs, which lower the vehicle height by changing the spring rate and adjusting the oil level without significantly altering the free length of the spring.
Enjoy the smooth ride of the constant rising rate, which softly absorbs shocks and provides consistent support deep into the stroke.
The front springs come with the necessary amount of fork oil.
Compatible models
SUZUKI GSX1300R '08-'17
SUZUKI GSX1300R (ABS) '08-'17
Specifications
Lowdown: Approx. 15mm
Spring material number: 1090
Fork oil viscosity/oil level: SAE7.5/120mm
Preload adjustment: 4 turns
Sag value: 38mm
Compression adjustment: 10 clicks out
Rebound adjustment: 4 clicks out
Setting notes: Install with the tapered end facing up.

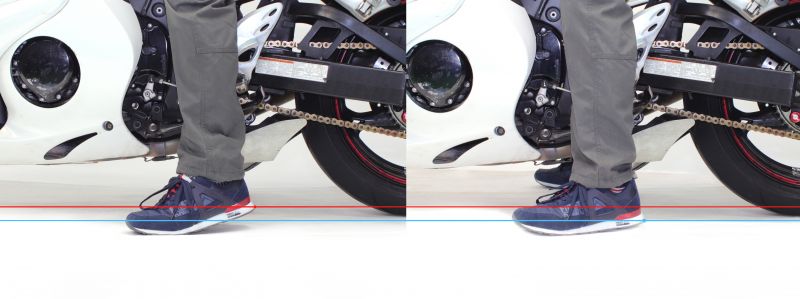

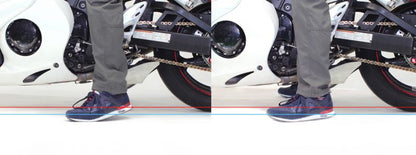

*When using the side stand, park on a flat surface with the bike in first gear. (Due to the lowdown, the bike will stand more upright than stock)
*After installation, the vehicle balance will change significantly. Always adjust the front and rear settings before riding.
*Lowdown parts are designated parts, so no structural modification procedures are required.
*For lowdowns of 30mm or more, a short side stand may be required depending on the vehicle's condition. For models with preload adjustment, adjust the preload to a lowdown amount that allows the side stand to be used.
*The image is for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
