Rear Spring Lowering approx. 30mm Katana

[HYPERPRO 22051741 Rear Spring Lowdown Approx. 30mm KATANA Suspension]
■Rear Spring

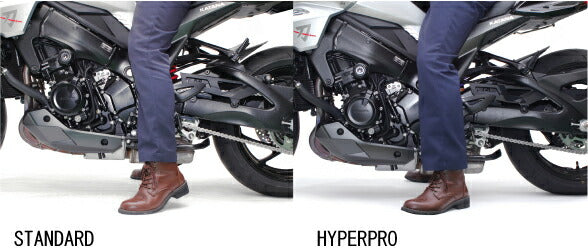

A unique lowdown spring from HYPERPRO that lowers the vehicle height by changing the spring rate and oil level without significantly altering the free length of the spring.
Enjoy the smooth ride of the constant rising rate, which flexibly absorbs shocks and maintains stability deeper in the stroke.
Compatible models
SUZUKI KATANA '19-'22
Specifications
Lowdown: Approx. 30mm
Spring Part Number: 1660
Preload Adjustment: 2 POS
Sag Value: 42mm
Rebound Adjustment: 2 turns out
Setting Notes: Install with the tapered end facing down.
*When using the side stand, park on a flat surface with the bike in first gear. (The vehicle will be more upright than with a normal ride height due to the lowdown.)
*After installation, the vehicle's balance will change significantly. Always adjust the front and rear settings before riding.
*Lowdown parts are considered designated components, so no structural modification procedures are required.
*For lowdowns of 30mm or more, a short side stand may be necessary depending on the vehicle's condition. For models with preload adjustment, set the lowdown amount to allow the side stand to be used.
*Images are for illustration purposes only. The design and specifications of the products shown are subject to change without notice. Please be aware of this.
