Rear spring: Approx. 30mm lowering for Tiger 1050

【HYPERPRO Hyperpro 22092031 Rear Spring Lowdown Approx. 30mm Tiger 1050 Suspension】

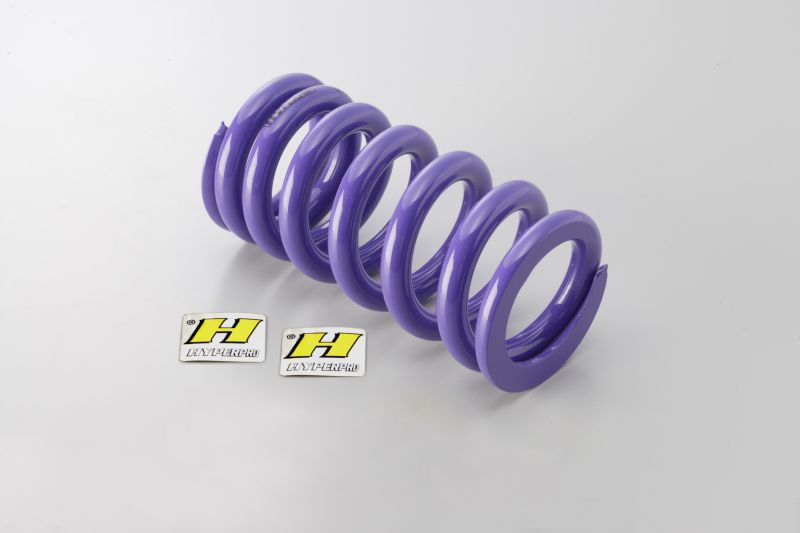

■Rear Spring
Hyperpro's unique lowdown spring lowers the ride height by changing the spring rate and oil level adjustment without significantly changing the free length of the spring.
Enjoy the smooth ride of Constant Rising Rate, which absorbs shocks flexibly and holds firmly in the deep stroke.
Compatible models
TRIUMPH TIGER 1050 '07-'10
Specifications
Lowdown: Approx. 30mm
Spring part number: 1401
Preload adjustment: Weakest
Sag value: 40mm
Compression adjustment: No adjustment
Rebound adjustment: 1.0 turn (+/-0.5).
*When using the side stand, park on a flat surface with the transmission in first gear. (The vehicle will be more upright than normal due to the lowdown.)
*The vehicle balance will change significantly after installation. Always adjust the front and rear settings before riding.
*Lowdown parts are considered designated parts, so no structural modification procedures are required.
*For lowdowns of 30mm or more, a short side stand may be required depending on the vehicle condition. For models with preload adjustment, adjust the setting while adjusting to a lowdown amount that allows the side stand to be used.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
