Rear spring, approximately 20mm lower, R1200GS

【HYPERPRO Hyperpro 22092821 Rear Spring, Lowdown Approx. 20mm R1200GS Suspension】

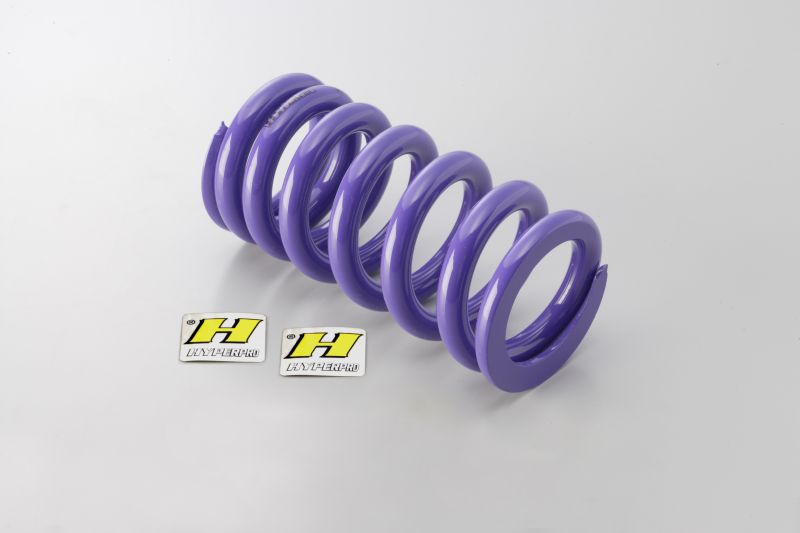

■Rear Spring
Hyperpro's unique lowdown spring lowers the vehicle height by changing the rate and adjusting the oil level, without significantly changing the free length of the spring.
Enjoy the smooth ride of the constant rising rate, which softly absorbs shocks and maintains stability at the end of its travel.
Compatible models
BMW R1200GS LC ADVENTURE ESA '14-'18 (Water-cooled)
Specifications
Lowdown: Approx. 20mm
Spring material part number: 1588
Preload adjustment: ESA +3
Sag value: 45mm
Compression adjustment: ESA
Rebound adjustment: ESA
Setting notes: Install with 3 slide rings supplied at the bottom.
*When using the side stand, park the motorcycle on a flat surface with the transmission in first gear. (The motorcycle will be more upright than normal due to the lowdown.)
*The vehicle balance will change significantly after installation. Always adjust the front and rear settings before riding.
*Lowdown parts are designated parts, so structural modification procedures are not required.
*For lowdowns of 30mm or more, a short side stand may be required depending on the condition of the vehicle. For models with preload adjustment, adjust the setting while ensuring the side stand can be used with the reduced ride height.
*Images are for illustration purposes only, and the design and specifications of the products shown may be changed without prior notice. Thank you for your understanding.
