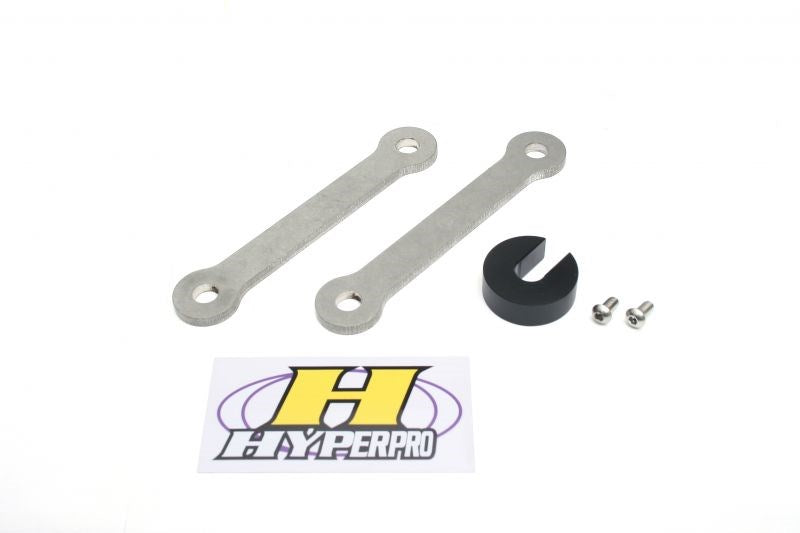

Lowering Link Kit Pull Rod -25mm XT660Z Tenere

【HYPERPRO Hyperpro 22339006 Lowdown Link Kit Pull Rod -25mm XT660Z Tenere Ride Height Adjustment】
■Lowdown Spring
A plate that lowers the ride height by changing the position of the normal suspension through the replacement of the rear suspension link.
It is also possible to replace the spring with a Hyperpro spring at the same time.
We offer kits with optimal shapes for each vehicle model. In addition, for some vehicle models, a stroke limiter is included to prevent bumping (bottoming out) during full stroke due to the lowdown.
Compatible models
YAMAHA XT660Z TENERE '08-'12
Specifications
Stroke limiter included: Included
Stock side stand angle: 15°
Side stand angle after kit installation: 8°
Required side stand cut length: 30mm
Maximum front fork protrusion: 25mm
Type: Pull rod
Lowdown amount: 25mm.
*Depending on vehicle characteristics, the inclination of the stand in its stock condition varies. Please prepare a short stand of the specified length separately or cut the stock stand by the specified length.
*Front suspension settings are recommended to achieve vehicle balance.
*Lowdown parts are designated parts, so structural modification procedures are not required.
*The image is for illustrative purposes only, and the design and specifications of the products shown may change without notice. Please understand.
