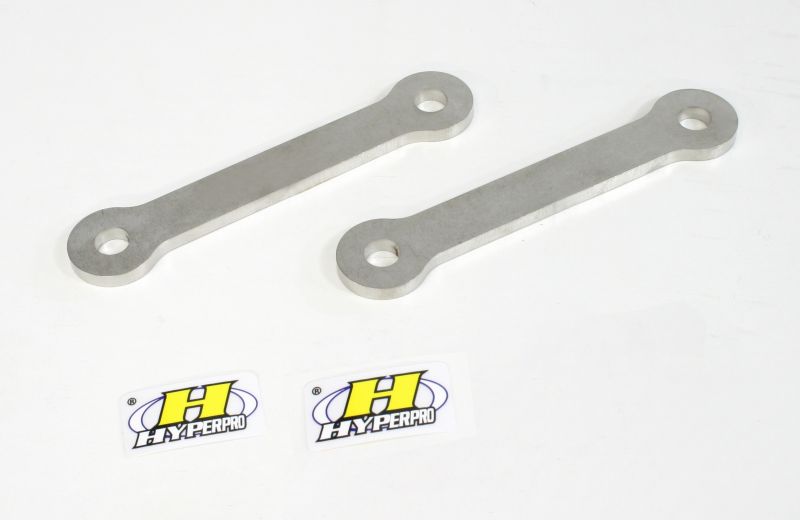

Lowering Link Kit Approx. -30mm Pull Rod GSX1300R

【HYPERPRO Hyperpro 22359001 Lowdown Link Kit Approx. -30mm Pull Rod GSX1300R Rear Shock Suspension】
■Lowdown Spring
Plates that lower the vehicle height by replacing the rear suspension link and changing the normal suspension position.
It is also possible to replace the spring with a Hyperpro spring at the same time.
Kits with optimal shapes are set for each vehicle model. In addition, depending on the vehicle model, a stroke limiter is included to prevent bumping (bottoming out) during full stroke due to lowdown.
Compatible models
SUZUKI GSX1300R '99～'07
Specifications
Stroke limiter included: No
Lowdown amount: 30mm
Genuine side stand angle: 10.5°
Side stand angle after kit installation: 9°
Side stand cutting required: Not required
Front fork maximum protrusion amount: None
Type: Pull rod.
*Depending on vehicle characteristics, the inclination of the stand in its genuine state varies. Please prepare a short stand for the specified value separately or cut the genuine stand by the specified value. (25mm cut recommended)
*Front setting is recommended to achieve vehicle balance.
*Lowdown parts are designated parts, so structural change procedures are not required.
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
