Lowdown Link Kit Pull Rod -30mm Bandit 1250

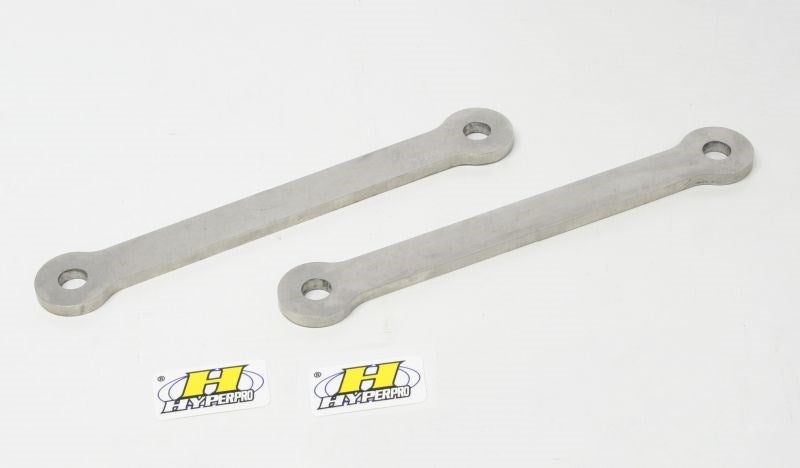

[HYPERPRO 22359003 Lowering Link Kit Pull Rod -30mm Bandit1250 Ride Height Adjustment]
■Lowering Spring
A plate that lowers the ride height by replacing the rear suspension link and changing the normal suspension position.
It is also possible to replace the spring with a Hyperpro spring at the same time.
Kits with optimal shapes are set for each model. In some models, a stroke limiter is included to prevent bumping (bottoming out) during full stroke due to lowering.
Compatible models
SUZUKI BANDIT1250 (ABS) '07-'09
Specifications
Stroke limiter included: No
Stock side stand angle: 10°
Side stand angle after kit installation: 5°
Required side stand cut amount: 15mm
Maximum front fork protrusion: 7mm
Type: Pull rod
Lowering amount: 30mm.
*The lean angle of the stand in the stock condition varies depending on vehicle characteristics. Please prepare a short stand of the specified length separately or cut the stock stand by the specified amount.
*Front setting is recommended to achieve vehicle balance.
*Lowering parts are designated parts, so no procedure for structural modification is required.
*The image is for illustrative purposes only, and the design and specifications of the products listed are subject to change without notice. Please understand.
