Lowering Link Kit Approx. -30mm Offset Pull Rod SV1000 SV1000S

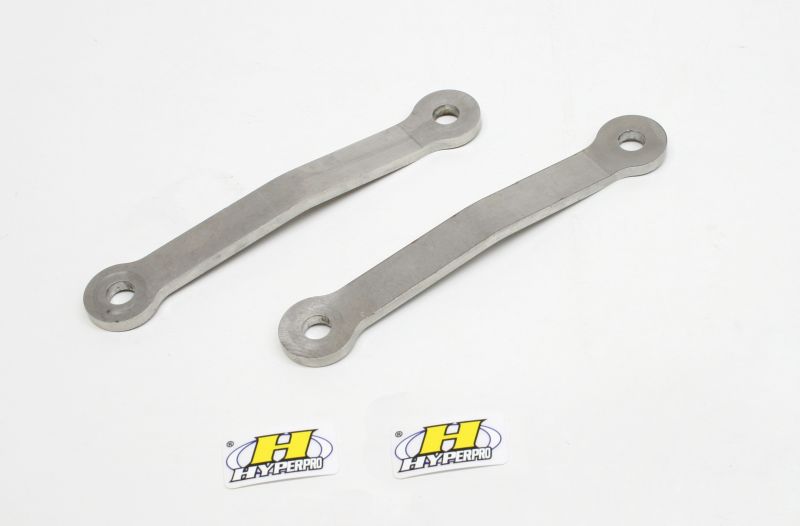

【HYPERPRO Hyperpro 22359007 Lowering Link Kit Approx. -30mm Offset Pull Rod for SV1000 SV1000S Rear Shock Suspension】
■Lowering Spring
Plate to lower the vehicle height by changing the position of the normal suspension by replacing the rear suspension link part.
It is also possible to replace the spring with a Hyperpro spring at the same time.
Kits with optimal shapes are set for each vehicle model. In addition, for some models, a stroke limiter is included to prevent bottoming out during full stroke due to lowering.
Compatible models
SUZUKI SV1000 '03-'06
SUZUKI SV1000S '03-'06
Specifications
Stroke limiter included: No
Lowering amount: 30mm
OEM side stand angle: 15°
Side stand angle after kit installation: 10°
Required side stand cut amount: 20mm
Maximum front fork protrusion amount: 20mm
Type: Offset pull rod.
*The lean of the stand in its original state varies depending on the vehicle's characteristics. Please prepare a short stand of the specified length separately or cut the original stand by the specified length. (25mm cut recommended)
*Front suspension setup is recommended to achieve vehicle balance.
*Lowering parts are designated parts, so no structural modification procedures are required.
*The image is for illustration purposes only, and the design and specifications of the products listed are subject to change without notice. Please understand.
