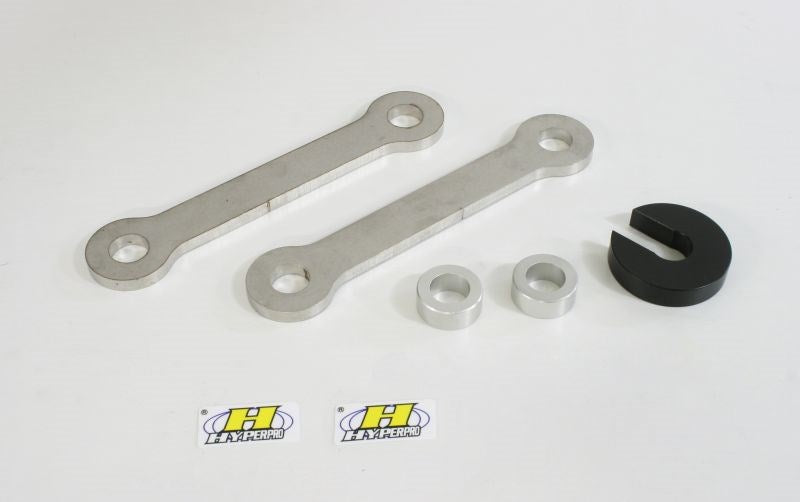

Lowering Link Kit Pull Rod -40mm DR-Z400S DR-Z400SM

【HYPERPRO Hyperpro 22359008 Lowering Link Kit Pull Rod -40mm DR-Z400S DR-Z400SM Ride Height Adjustment】
■Lowering Spring
Plates that lower the ride height by replacing the rear suspension link to change the normal suspension position.
It is also possible to replace the spring with a Hyperpro spring at the same time.
Kits with optimal shapes are set for each model. In addition, for some models, a stroke limiter is included to prevent bottoming out (bumping) during full stroke due to lowering.
Compatible models
SUZUKI DR-Z400S '00-'09
SUZUKI DR-Z400SM '05-'09
Specifications
Stroke limiter included: Included
OEM side stand angle: 400S/10°, 400SM/17°
Side stand angle after kit installation: 400S/5°, 400SM/12°
Required side stand cut amount: 400S/20mm, 400SM/Not required
Maximum front fork protrusion: 400S/7mm, 400SM/15mm
Type: Pull Rod
Lowering amount: 40mm.
*Depending on vehicle characteristics, the lean of the stand in its original state varies. Please prepare a separate short stand for the specified value, or cut the genuine stand by the specified value.
*Front suspension settings are recommended to achieve vehicle balance.
*Since lowering parts are designated parts, no structural modification procedures are required.
*The image is for illustration purposes only, and the design and specifications of the products listed may change without prior notice. Please understand.
