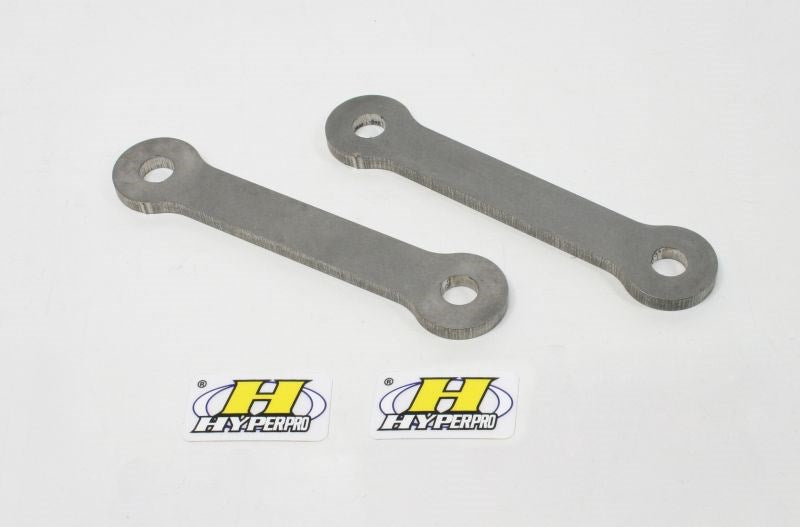

Lowering Link Kit Pull Rod -25mm Gladius 400/650

【HYPERPRO Hyperpro 22359010 Lowdown Link Kit Pull Rod -25mm Gladius 400/650 Ride Height Adjustment】
■Lowdown Spring
This plate lowers the ride height by changing the position of the normal suspension by replacing the rear suspension link.
It is also possible to replace the spring with a Hyperpro spring at the same time.
Kits with optimal shapes are available for each model. Additionally, for some models, a stroke limiter is included to prevent bumping (bottoming out) during full stroke due to the lowdown.
Compatible models
SUZUKI GLADIUS400 (ABS) '09-'15
SUZUKI GLADIUS650 '09-'15
Specifications
Stroke limiter included: No
Stock side stand angle: 11°
Side stand angle after kit installation: 7.5°
Side stand cut amount required: Not required
Front fork maximum protrusion: 3mm
Type: Pull rod
Lowering amount: 25mm.
*The angle of the stand in its stock state varies depending on the vehicle's characteristics. Please prepare a short stand by the specified amount separately, or cut the stock stand by the specified amount.
*We recommend adjusting the front settings to achieve vehicle balance.
*Lowdown parts are considered designated parts, so no structural modification procedures are required.
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
