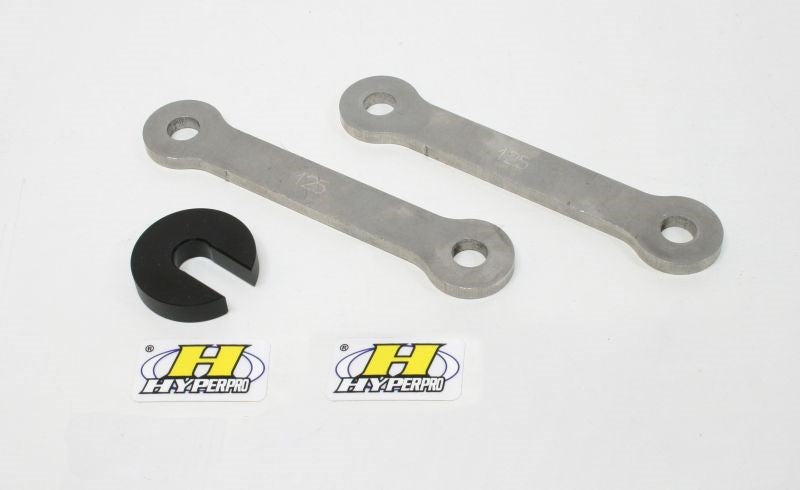

Lowering Link Kit Pull Rod -40mm Gladius 400/650

【HYPERPRO Hyperpro 22359011 Lowdown Link Kit Pull Rod -40mm Gladius 400/650 Ride Height Adjustment】
■Lowdown Spring
A plate that lowers the ride height by replacing the rear suspension link and changing the normal suspension position.
Of course, it is also possible to replace the spring with a Hyperpro one at the same time.
We offer kits with optimal shapes for each model. In addition, depending on the model, a stroke limiter is included to prevent bumping (bottoming out) during full stroke due to the lowdown.
Compatible models
SUZUKI GLADIUS400 (ABS) '09-'15
SUZUKI GLADIUS650 '09-'15
Specifications
Stroke limiter included: Included
Stock side stand angle: 11°
Side stand angle after kit installation: 3.5°
Side stand required cut amount: 35mm
Maximum front fork protrusion: 3mm
Type: Pull rod
Lowdown amount: 40mm.
*The inclination of the stand in its stock condition varies depending on vehicle characteristics. Please prepare a short stand by the specified amount separately, or cut the stock stand by the specified amount.
*Front suspension settings are recommended to achieve vehicle balance.
*As lowdown parts fall under designated components, no structural modification procedures are required.
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
