Lowering Link Kit Pull Rod -35mm Z750

【HYPERPRO Hyperpro 22379003 Lowering Link Kit Pull Rod -35mm Z750 Ride Height Adjustment】
■Lowering Spring
A plate that replaces the rear suspension link to change the normal suspension position and lower the ride height.
It is, of course, also possible to simultaneously replace the springs with Hyperpro springs.
We offer kits with optimal shapes for each vehicle model. In addition, depending on the vehicle model, a stroke limiter is included to prevent bumping (bottoming out) during full stroke due to lowering.
Compatible models
KAWASAKI Z750 '07-'10
KAWASAKI Z750(ABS) '07-'10
Specifications
Stroke limiter included: No
OEM sidestand angle: 12°
Sidestand angle after kit installation: 7.5°
Sidestand required cut length: 20mm
Maximum front fork protrusion: 15mm
Type: Pull Rod
Lowering amount: 35mm.
*The lean angle of the sidestand in its genuine state varies depending on vehicle characteristics. Please prepare a short stand for the specified value separately or cut the genuine stand by the specified value.
*We recommend adjusting the front settings to achieve vehicle balance.
*Lowering parts are designated parts, so no procedure for structural modification is required.

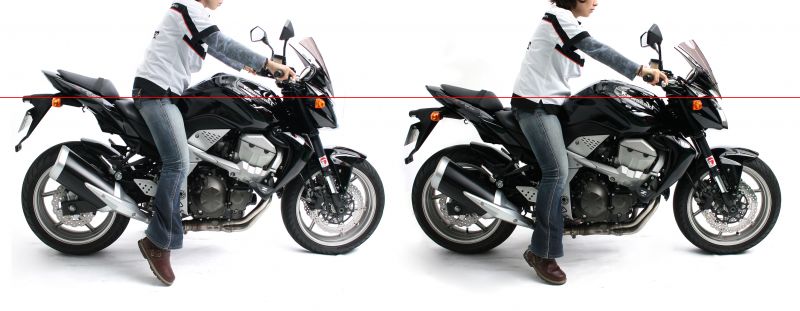

*The image is for illustration purposes only, and the design and specifications of the products shown may be changed without prior notice. Please be aware of this.
