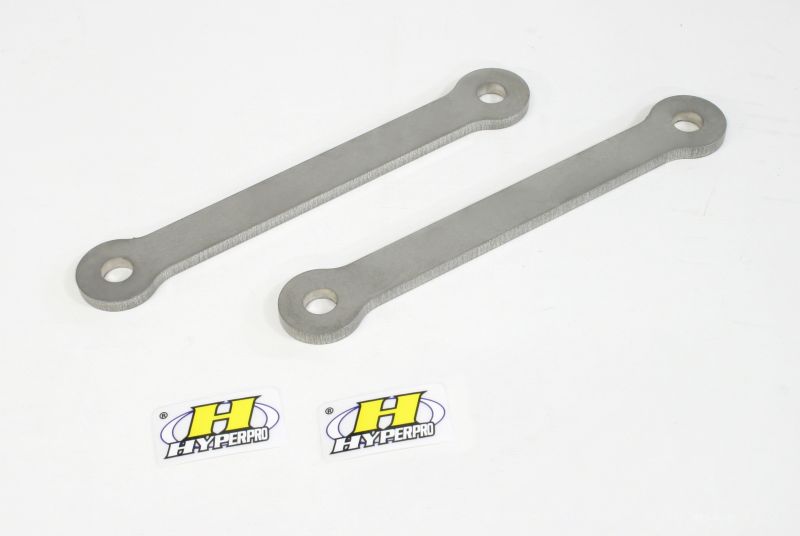

Lowdown Link Kit Pull Rod -25mm Ninja 250/R Z250

【HYPERPRO Hyperpro 22379004 Lowering Link Kit Pull Rod -25mm Ninja 250/R Z250 Ride Height Adjustment】
■Lowering Spring
Plates that lower the ride height by replacing the rear suspension link and changing the normal suspension position.
It is also possible to replace the spring with a Hyperpro spring at the same time.
We have set the optimal kit shape for each model. In addition, for some models, a stroke limiter is included to prevent bumping (bottoming out) during full stroke due to lowering.
Compatible models
KAWASAKI Ninja250 '13～'17
KAWASAKI Ninja250R '08～'13
KAWASAKI Ninja250(ABS) '13～'17
KAWASAKI Z250 ABS '15～'17
Specifications
Stroke limiter included: No
Stock side stand angle: 13°
Side stand angle after kit installation: 7.5°
Side stand cut amount required: Not required
Maximum front fork protrusion amount: Setting cannot be changed
Type: Pull rod
Lowering amount: 25mm.
*The inclination of the stand in its stock state varies depending on the vehicle characteristics. Please adjust the side stand according to the inclination after installation.
*The side stand angle after kit installation is the value when the Hyperpro lowering spring is installed simultaneously.
*Because the front structure does not allow protrusion, be sure to install it simultaneously with the Hyperpro lowering spring.
*Lowering parts are designated parts, so no procedure for structural modification is required.
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware of this.
