Lowering Link Kit Approx. -30mm Pull Rod Ninja 250/400

【HYPERPRO Hyperpro 22379005 Lowdown Link Kit Approx. -30mm Pull Rod Ninja 250/400 Rear Shock Suspension】
■Lowdown Spring

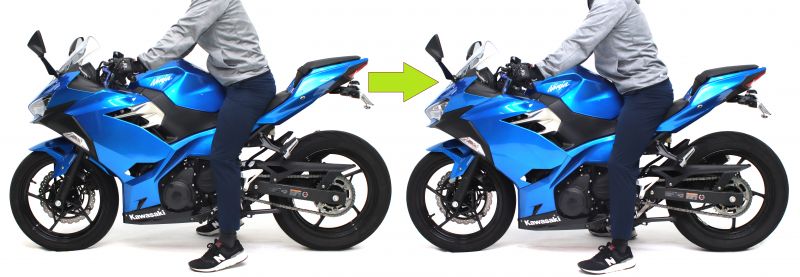

This plate replaces the rear suspension link to change the normal suspension position and lower the ride height.
It is also possible to replace the spring with a Hyperpro spring at the same time.
Kits with optimal shapes are set for each model. In addition, for some models, a stroke limiter is included to prevent bottoming out during full stroke due to the lowdown.
Compatible Models
KAWASAKI Ninja250(ABS) '18～'22
KAWASAKI Ninja400(ABS) '18～'22
Specifications
Stroke Limiter Included: No
Lowdown Amount: Approx. 30mm
Stock Side Stand Angle: 15°
Side Stand Angle After Kit Installation: 6°
Required Side Stand Cut Length: 25mm
Maximum Front Fork Protrusion: 20mm
Type: Pull rod.
*The lean angle of the stock stand varies depending on the vehicle's characteristics. Please prepare a separate shorter stand by the specified amount, or cut the stock stand by the specified amount. (25mm cut recommended)
*Front settings are recommended to achieve vehicle balance.
*Lowdown parts are considered designated parts, so no structural modification procedures are required.
*The image is for illustrative purposes only, and the design and specifications of the products listed are subject to change without notice. Please be aware.
