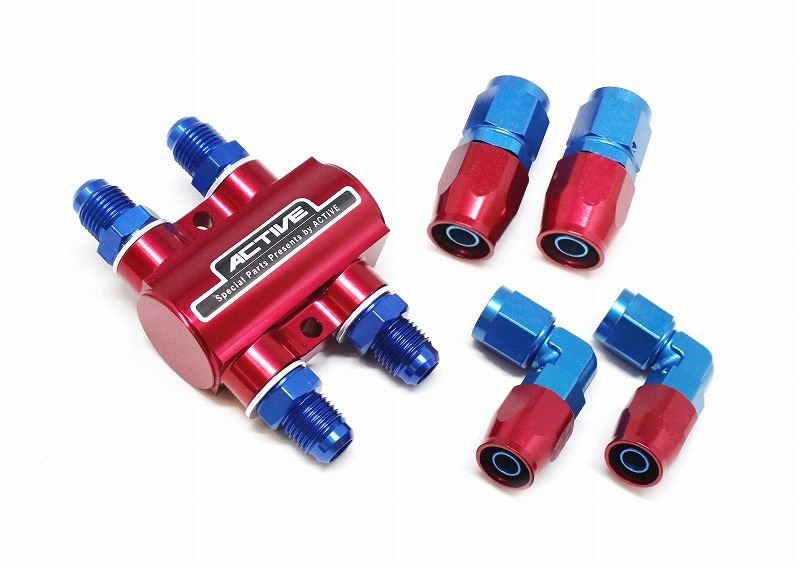

Thermostat Kit #8 with 2 Straight and 2 90° Fittings - Red

【ACTIVE AC1342218 Thermostat Kit #8 Straight Fitting / 90° Fitting (2 of each) Red】
■Product Description
Thermostat + fittings (2 straight, 2 90°) kit
A thermostat that is installed in the oil line of an oil cooler and controls the flow to the core according to the engine oil temperature. A built-in shape memory alloy opens and closes the valve. In low-temperature conditions, it prevents overcooling by opening the bypass line, and in high-temperature conditions, it maximizes the oil cooler's performance by closing the bypass line. The valve starts operating at 70°C (±3°C), making it ideal for warm-up.
In addition to the thermostat unit alone, kits with fittings convenient for aftermarket installation are also available.

Specifications
Compatible hose size: #8
Fitting color: Blue/Red
Color: Red

■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications are subject to change without notice. Thank you for your understanding.

Precautions
*The thermostat has a determined oil flow direction.
*The thermostat-side union size is M14 x P1.5.
*When installing, fix it to the frame or subframe, or use universal stays to fix it to the vehicle body. Ensure it does not come into contact with the engine or muffler due to vibrations during driving.
*An oil cooler kit is required separately for installation.
