Thermostat Kit #6 with 2 Straight Fittings and 2 90° Fittings, Black

【Active AC1342516 Thermostat Kit #6 Straight Fitting / 90° Fitting (2 pcs each) Black】
■Product Description

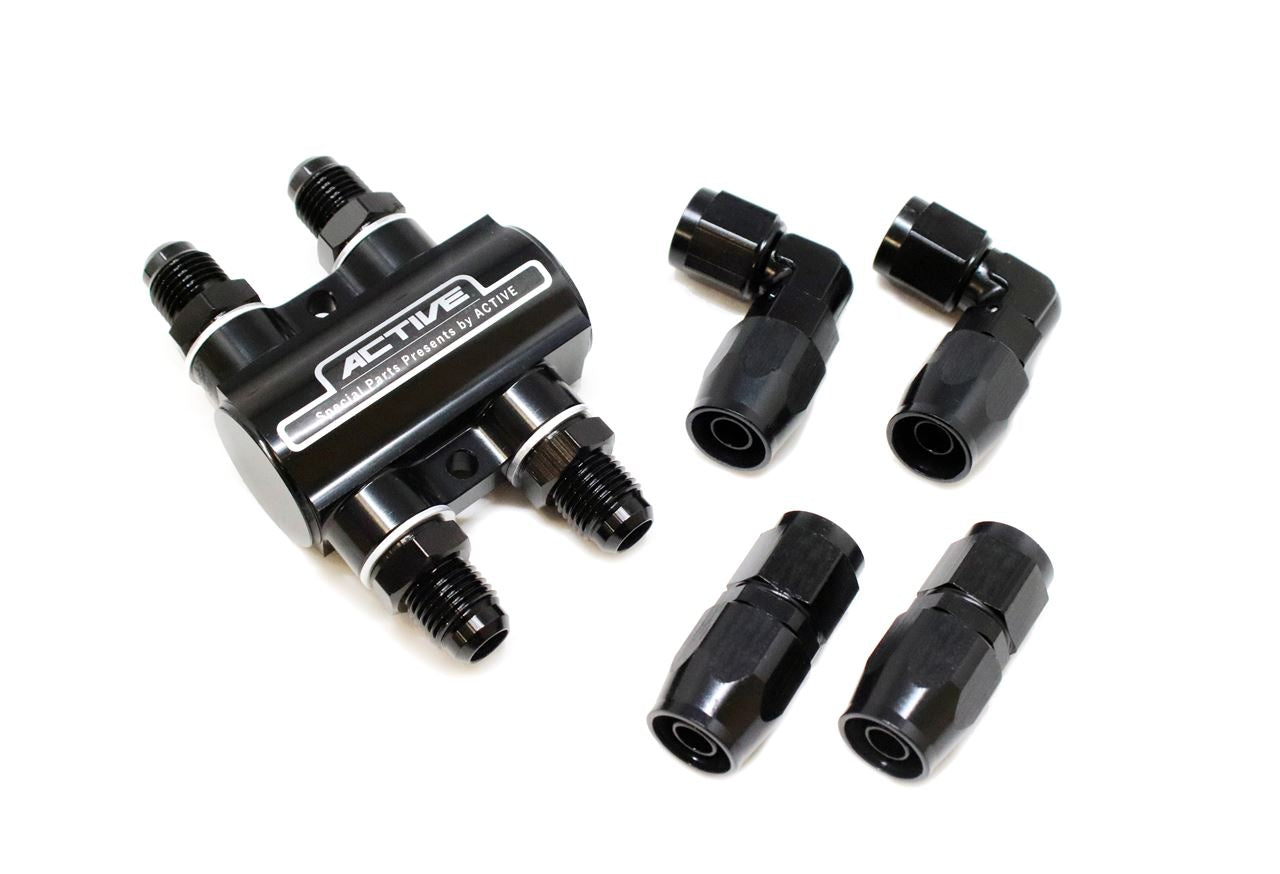

Thermostat + Fitting Kit (2 straight, 2 90°)
This thermostat controls the flow to the oil cooler core based on engine oil temperature, and is installed in the oil line of the oil cooler. A built-in shape-memory alloy opens and closes the valve. When the temperature is low, it opens the bypass line to prevent overcooling, and when the temperature is high, it closes the bypass line to maximize the performance of the oil cooler. Valve operation begins at 70℃ (±3℃), making it ideal for warming up the engine.
In addition to the thermostat body alone, we also offer kits with fittings for easy retrofitting.
If you have purchased an oil cooler's "thermo-compatible kit," please purchase the "body only."

Specifications
Compatible hose size: #6
Fitting color: Black
Color: Black

■Image Notes
※Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications are subject to change without notice. Please understand.

Precautions
※The thermostat has a specified oil flow direction.
※The union size on the thermostat side is M14×P1.5.
※When installing, secure it to the frame or subframe, or use universal brackets to secure it to the vehicle body. Ensure it does not come into contact with the engine or muffler due to vibrations during driving.
※An oil cooler kit is required separately for installation.
