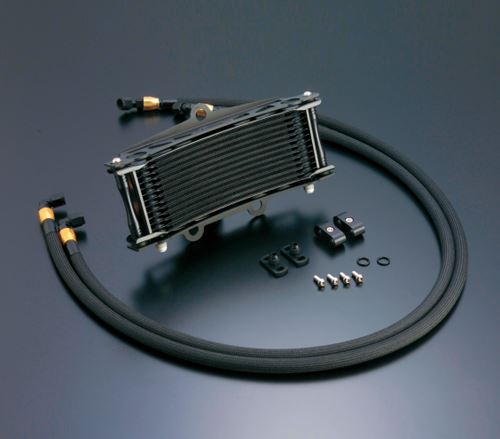

Oil Cooler Kit Side-routed Round #6 9-13R Thermo-compatible Kit Black Specification ZEPHYR400/X

[ACTIVE AC14037813BC Oil Cooler Kit, Side-Mounted Round #6 9-13R, Thermostat Compatible Kit, Black Specification, ZEPHYR400/X]
■Product Description
Active's round oil cooler pursues lightweight, compact, and high performance.
While reducing the frontal projection area by 7% compared to a straight core, the cooling effect is improved! It maintains a constant oil temperature and keeps the engine in good condition.

Specifications
Core: Active
Fittings: Active
Vehicle-specific stay: Active
Hose routing: Side-mounted
Hose size: #6
Core size: 9-inch 13-row
Included fittings: Long: 90°-45° / Short: 90°-45°
Thermostat compatible: Yes

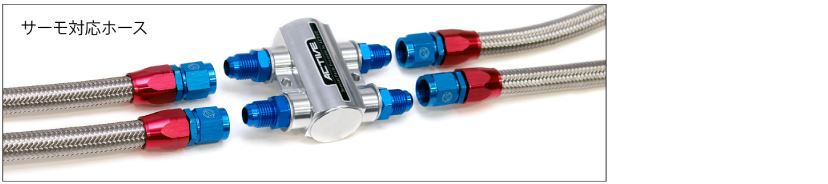

For product numbers with "Yes" in the thermostat compatibility column
The hose is split (with fittings) so that the thermostat body can be incorporated.
Color: Black specification
■Compatible models
KAWASAKI
ZEPHYR400 '1989 - '1995
ZEPHYR400X '1996 - '2008

■Image notes
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications may change without prior notice. Please understand.

Precautions
*Thermostat is sold separately.
*Most photos show conventional Earl's products.
*Black specification fittings will be black, not gold.
*Settings are based on the stock exhaust.
*Install the oil line so that it does not come into contact with the engine or exhaust.
*Installation of the thermostat-compatible kit requires a separate thermostat body. Please check the clearance with the vehicle thoroughly before installation.
*The outlet (union) is non-disassemblable. Do not loosen or remove it as it may cause oil leaks.
