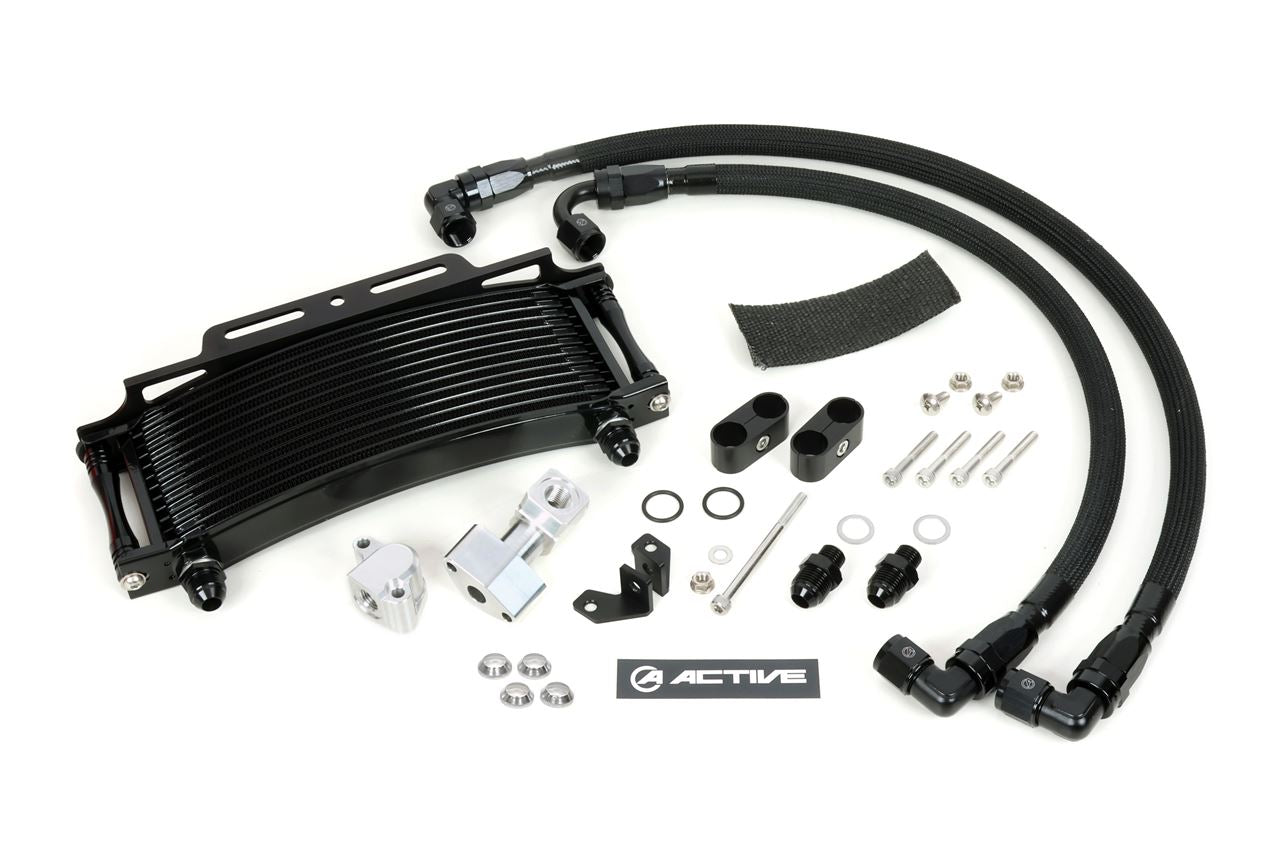

Oil Cooler Kit, Side-Mounted Round, #8 9-13R, Thermostat-Compatible Kit, Black Specifications, Z1/Z2/Z750FX-1/Z1000MK2

【Active AC14039313BC Oil Cooler Kit Side Route Round #8 9-13R Thermostat-compatible Kit Black Specification Z1/Z2/Z750FX-1/Z1000MK2】
■Product Description
Active's round oil cooler pursues lightness, compactness, and high performance.
Compared to a straight core, the front projected area is reduced by 7% while cooling efficiency is increased! It maintains oil temperature and keeps the engine in good condition.

Specifications
Core: Active
Fittings: Active
Vehicle-specific stays: Active
Hose routing: Side route
Hose size: #8
Core size: 9-inch 13-stage

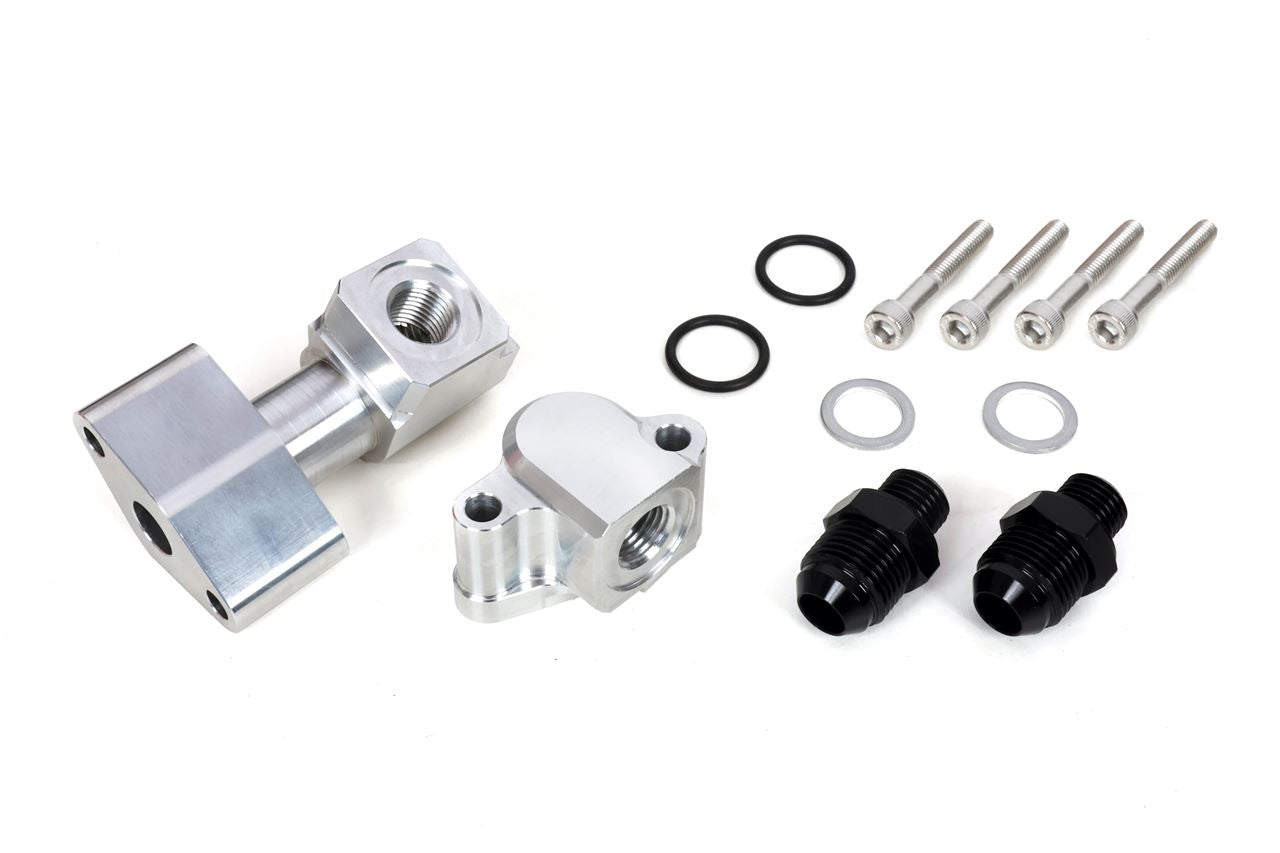

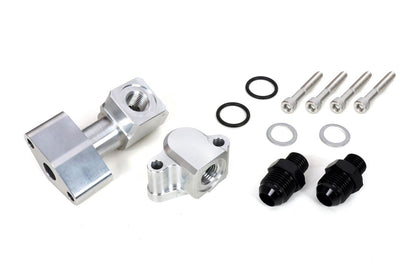

Included fittings
Core Left: Thermo Left = 90°-ST / Core Right: Thermo = 45°-ST / Engine Left: Thermo = 90°:ST / Engine Left: Thermo = 45°:ST
Thermostat compatibility: ○
About part numbers where "Thermostat compatibility" is "○"

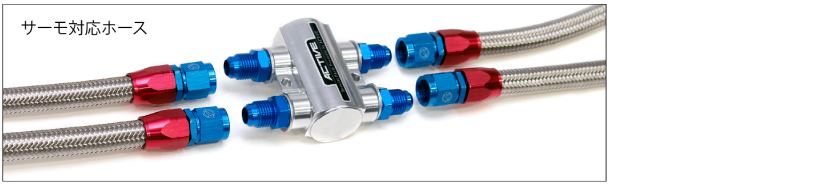

The hose is divided to allow the thermostat body to be incorporated (with fittings).
Color: Black specification
■Compatible models
KAWASAKI
Z1000MK(2)
Z1
Z2
Z750FX-(1)

■Image Notes
*Images are for illustration purposes only. Includes products of different sizes and colors. Product design and specifications may change without notice. Please understand.

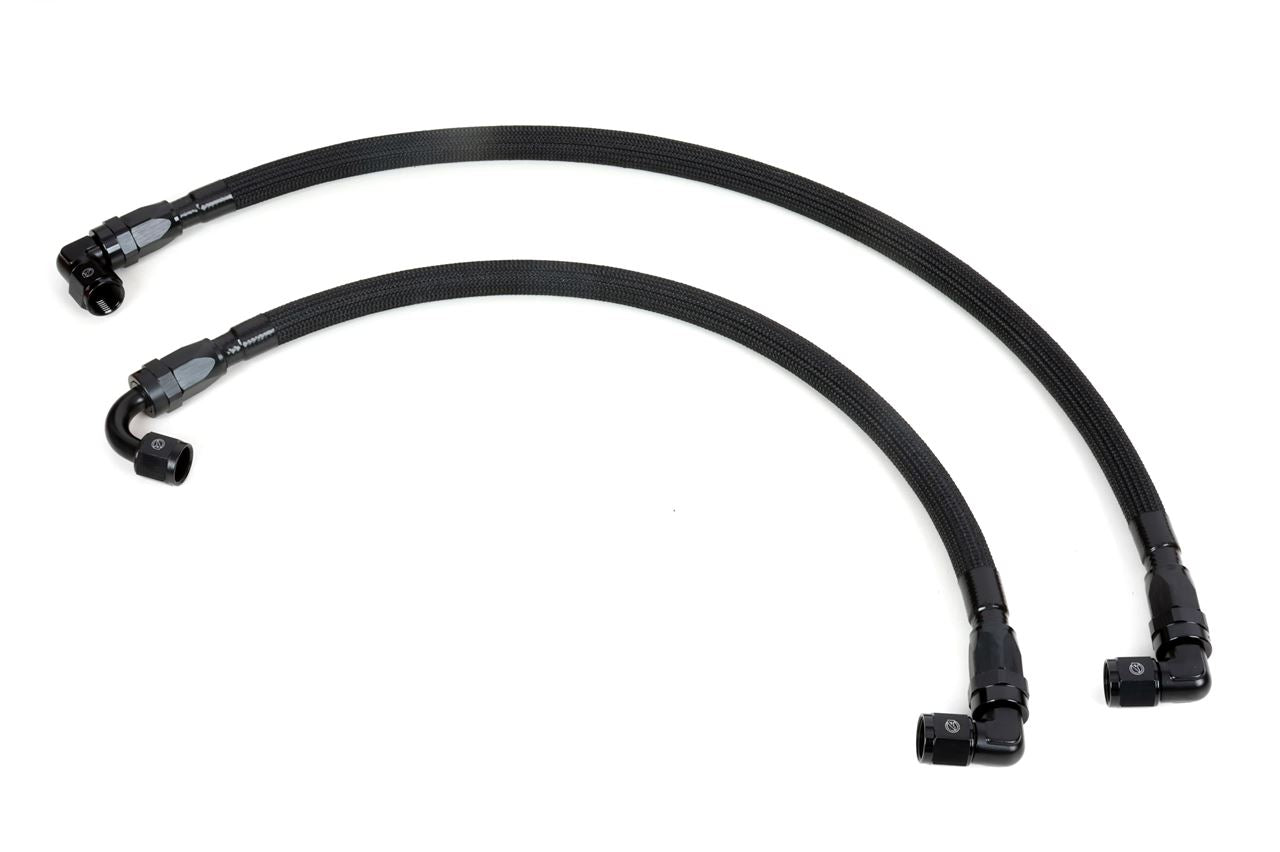

*The photo shows a non-thermostat compatible hose.

Precautions
*The thermostat is sold separately.
*Photos are mostly of conventional Earl's products.

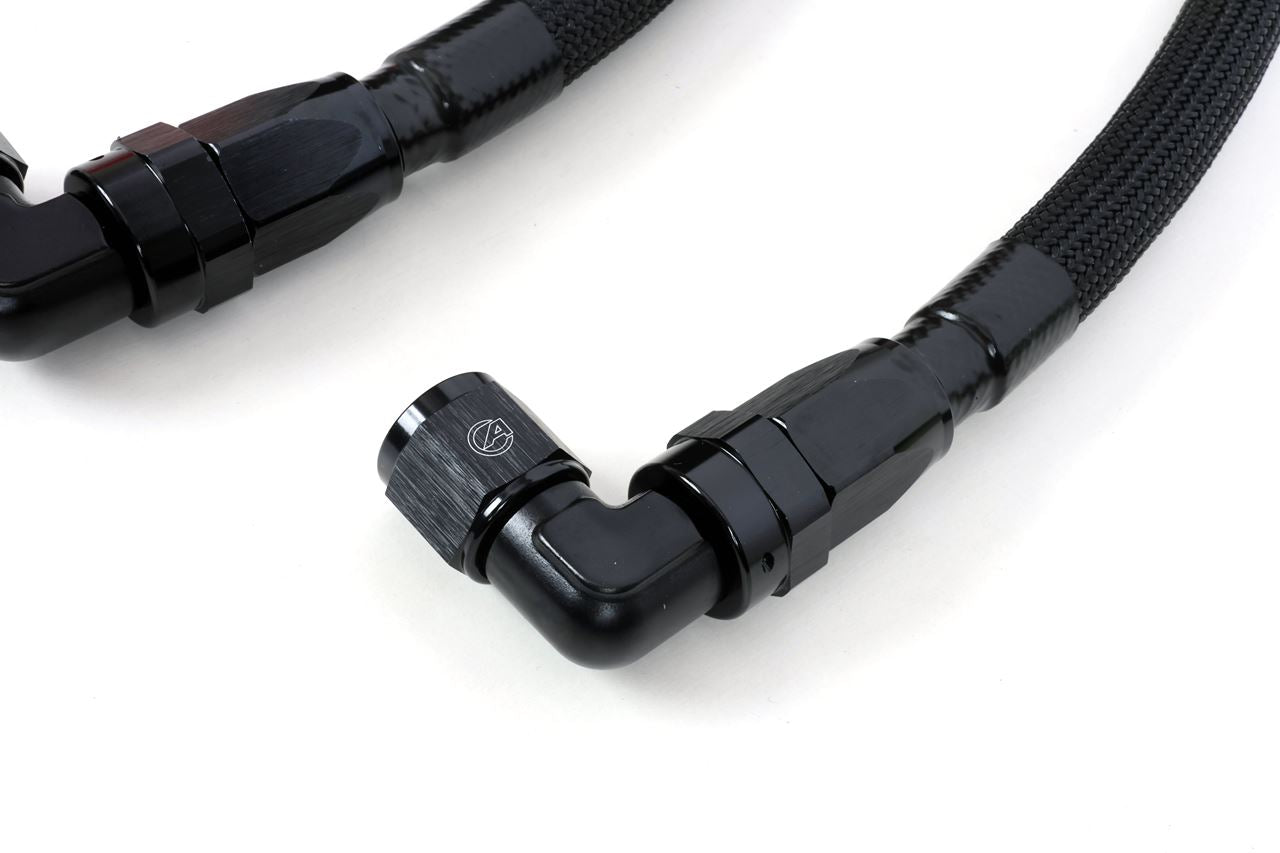

*Black specification fittings will be black, not gold.
*The tachometer cable may come into contact, so replacement is recommended.
*Settings are based on the standard muffler.
*Install the oil line so that it does not come into contact with the engine or muffler.
*Installation of the thermostat-compatible kit requires a separate thermostat body. Please check the clearance with the vehicle thoroughly before installation.
*The outlet (union) is non-disassemblable. Do not loosen or remove it, as this may cause oil leakage.
