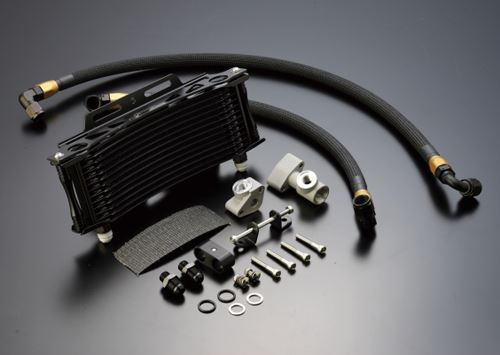

Oil Cooler Kit, Top Mount, Front, Round #8, 9-13 Rows, Black Specification, Z1/Z2/Z750FX-1/Z1000MK2

【ACTIVE AC14047313B Oil Cooler Kit, Front Top Mount, Round #8 9-13R Black Spec, Z1/Z2/Z750FX-1/Z1000MK2 】
■Product Description
Active's round oil cooler, pursuing lightweight, compact, and high performance.
While reducing the front projected area by 7% compared to a straight core, the cooling effect is increased! It maintains a constant oil temperature, preserving the engine's condition.

Specifications
Core: Active
Fittings: Active
Vehicle-specific stay: Active
Hose routing: Front top mount
Hose size: #8
Core size: 9 inch 13 row

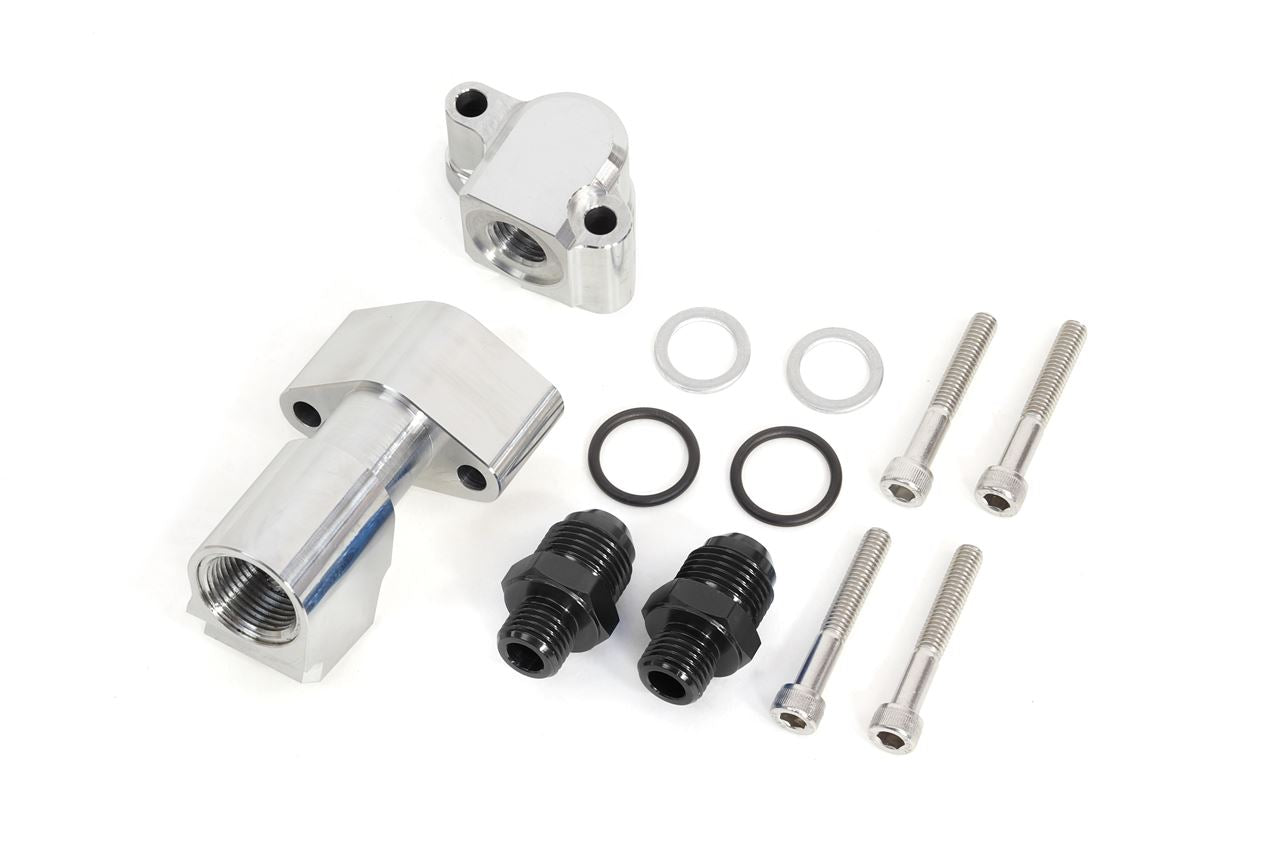

Included fittings: Long: 90°-120° / Short: 90°-90°
Color: Black spec
■Compatible models
KAWASAKI
Z1000MK(2)
Z1
Z2
Z750FX-(1)

■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications are subject to change without notice. Please understand.

Precautions
*Thermostat sold separately.
*Most photos show conventional Earl's products.
*The fittings for the black specification will be black, not gold.
*The stock cam tensioner cannot be installed.
*The hose is routed directly over the insulators (confirmed installation with early Z1 carburetors).
*The fender needs to be cut as it will interfere with the front fender during full bottoming.
*Settings are based on the stock muffler. Install the oil lines so they do not come into contact with the engine or muffler.
*When installing a thermostat-compatible kit, a separate thermostat body is required. Please check the clearance with the vehicle thoroughly before installation.
*The outlet (union) is non-separable. Do not loosen or remove it as it may cause oil leaks.
