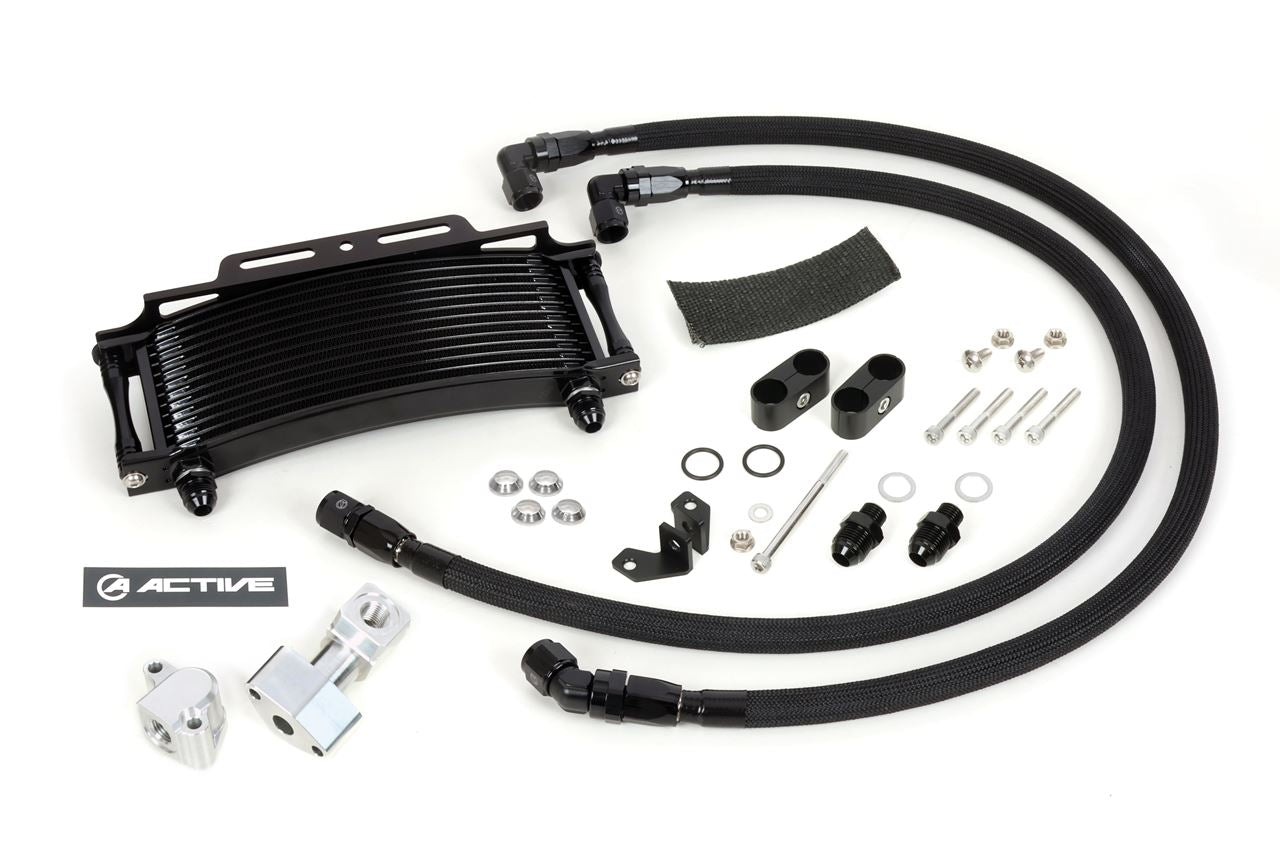

Oil Cooler Kit, Upper Rear, Round #8, 9-13R, Black Specification, Z1/Z2/Z750FX-1/Z1000MK2

【ACTIVE AC14047413B Oil Cooler Kit, Top-Mounted Rear, Round #8 9-13R Black Specification Z1/Z2/Z750FX-1/Z1000MK2】
■Product Description
This ACTIVE round oil cooler pursues lightness, compactness, and high performance.
While reducing the frontal projection area by 7% compared to straight cores, cooling performance is improved! It maintains a constant oil temperature, preserving engine condition.

Specifications
Core: Made by ACTIVE
Fittings: Made by ACTIVE
Vehicle-specific stays: Made by ACTIVE
Hose routing: Top-mounted rear
Hose size: #8
Core size: 9-inch 13-row

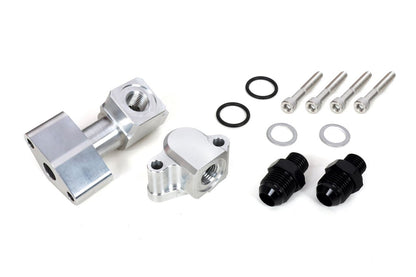

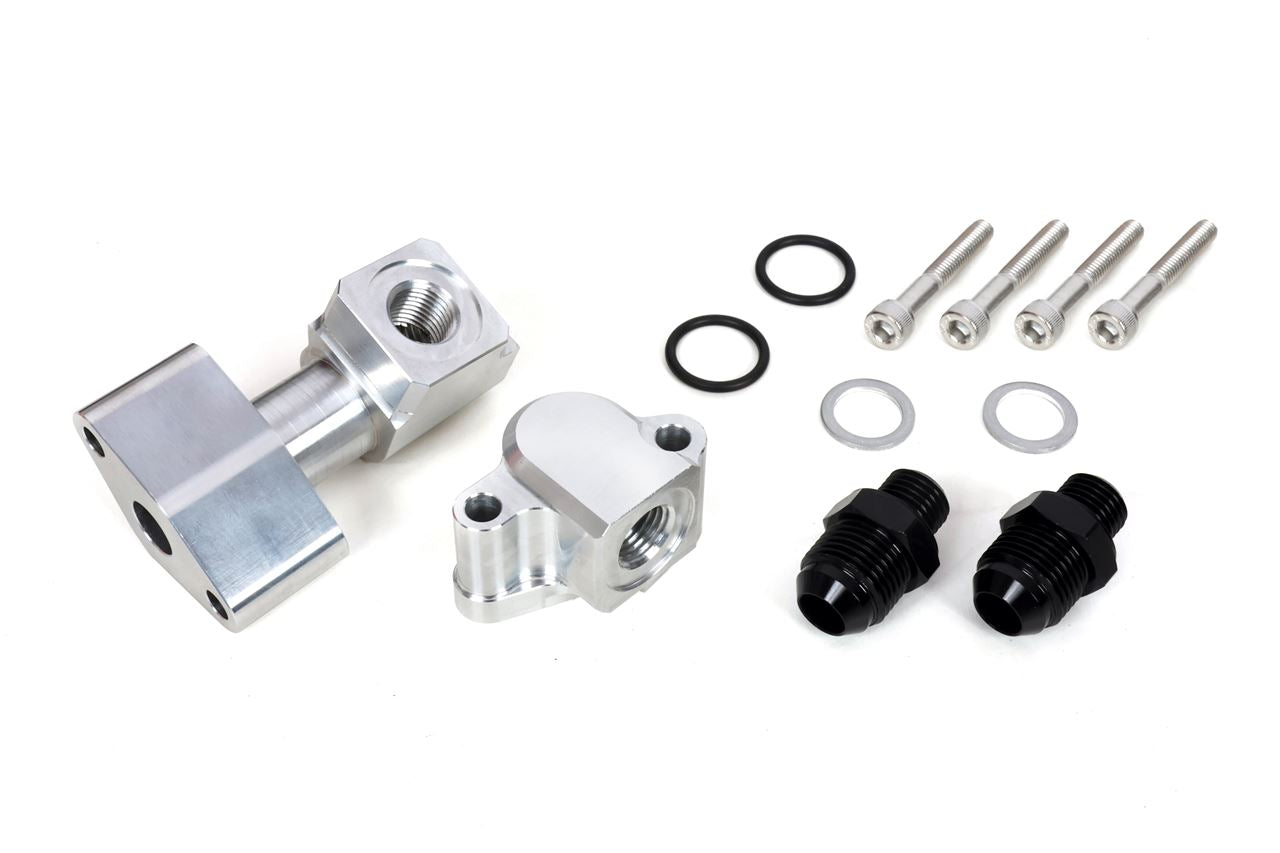

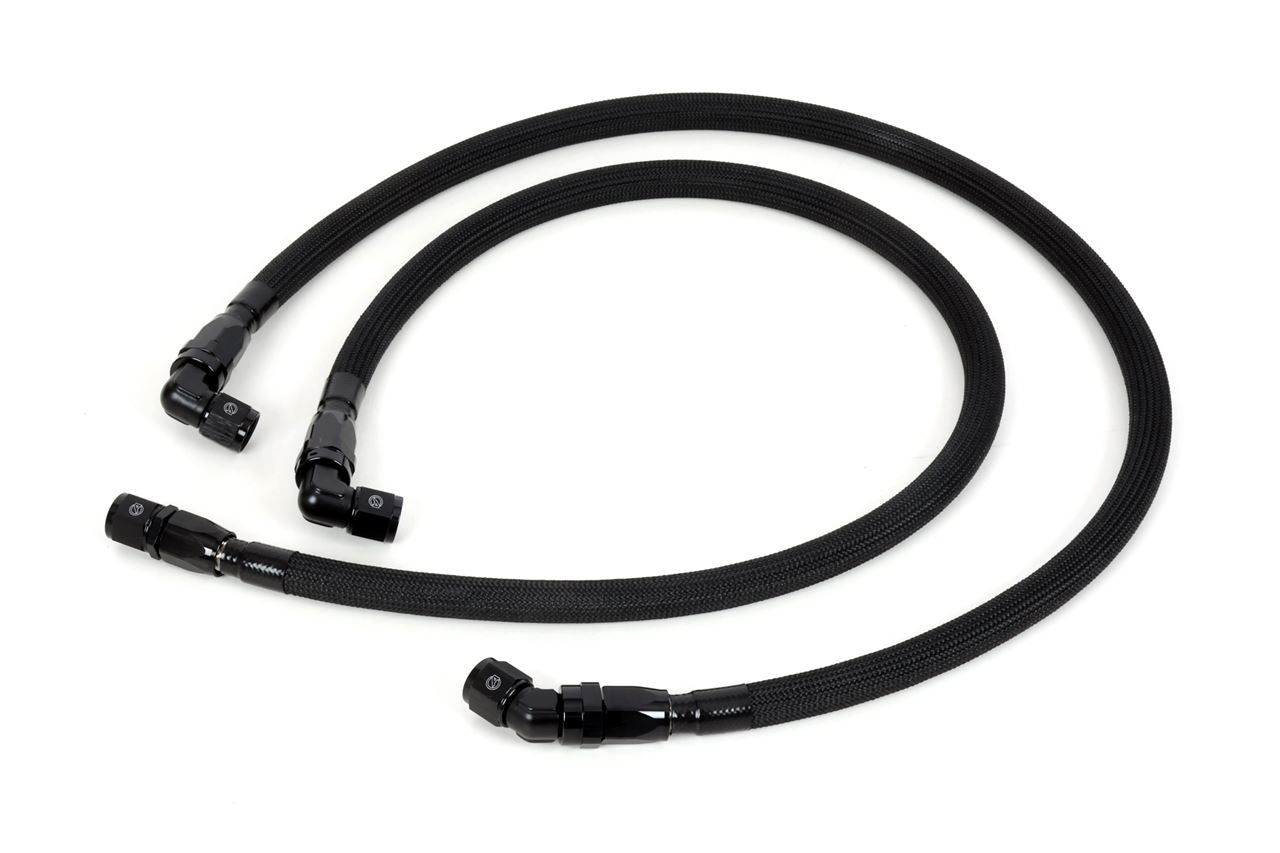

Included fittings: Long: 90°-45° / Short: 90°-ST
Color: Black specification
■Compatible models
KAWASAKI
Z1000MK(2)
Z1
Z2
Z750FX-(1)

■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product designs and specifications are subject to change without notice. Please be aware of this.

Precautions
*The thermostat is sold separately.
*Most photos show conventional Earl's products.
*Fittings for the black specification will be black, not gold.
*On Z1 and Z2, the normal air cleaner box can be installed simultaneously.
*For installation on Z1000MK(2) and Z750FX-(1), the material is provided on the premise of making it a funnel specification.
*To prevent contact with the front fender at full bottoming, the fender must be cut.
*Settings are based on the standard muffler. Install oil lines so they do not come into contact with the engine or muffler.
*For installing thermostat-compatible kits, a separate thermostat body is required. Ensure sufficient clearance with the vehicle body before installation.
*The outlet (union) is non-separable. Do not loosen or remove it as this may cause oil leaks.
