Elaborate Front 4P Radial Caliper φ34/30 Titanium Bolt/Titanium Piston Specification (Left) Black

[GALESPEED GSFCAL3430TTP Elaborate Front 4P Radial Caliper φ34/30 Titanium Bolt/Titanium Piston Specification (Left) Black]

■Product Description
High performance, high rigidity, high quality.
Based on the concept of "a refined and elaborate aluminum billet caliper with street and sport riding as its main stage," the blank material is 3D-machined. It achieves a functional beauty worthy of the name Elaborate (sophisticated, skillful).
This custom caliper offers strong braking force, high controllability, and a direct lever feel, differing from the genuine feel.

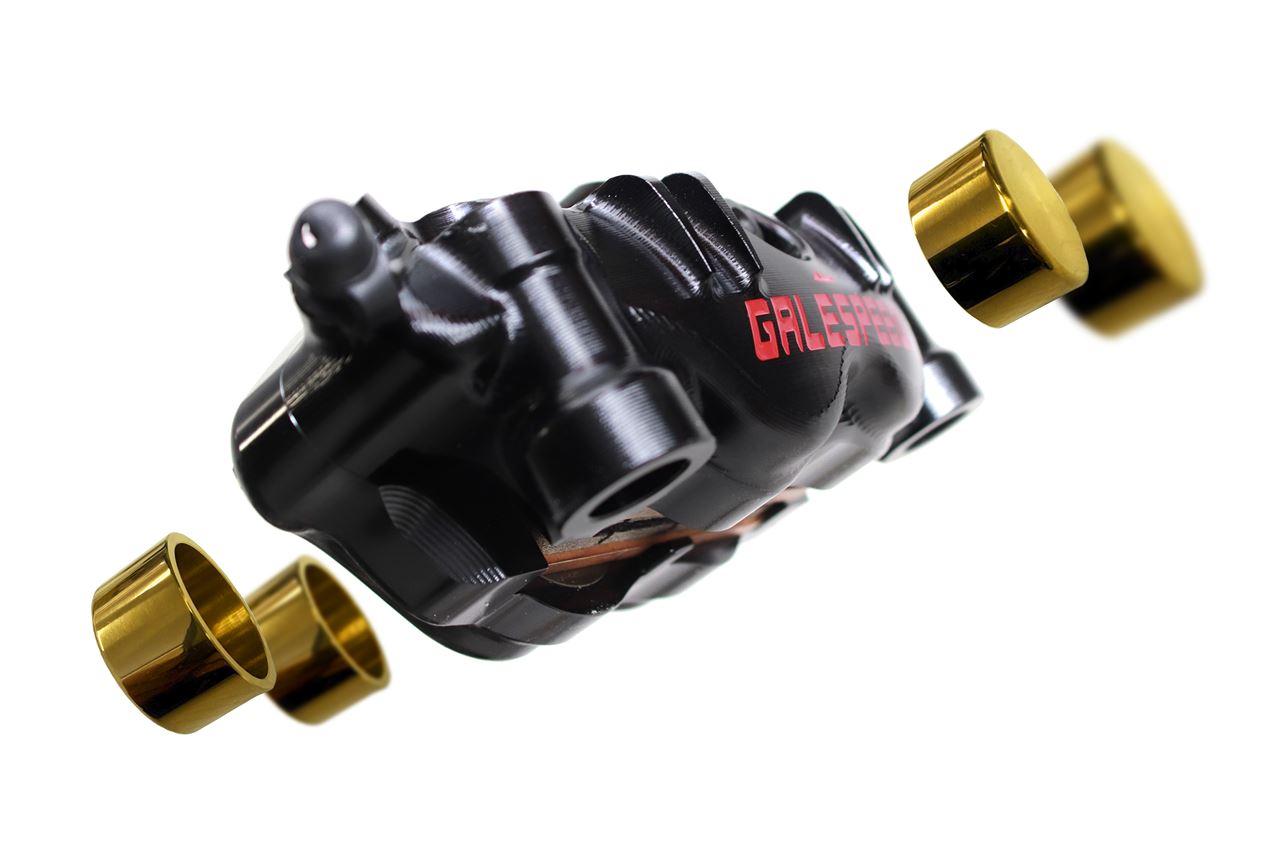

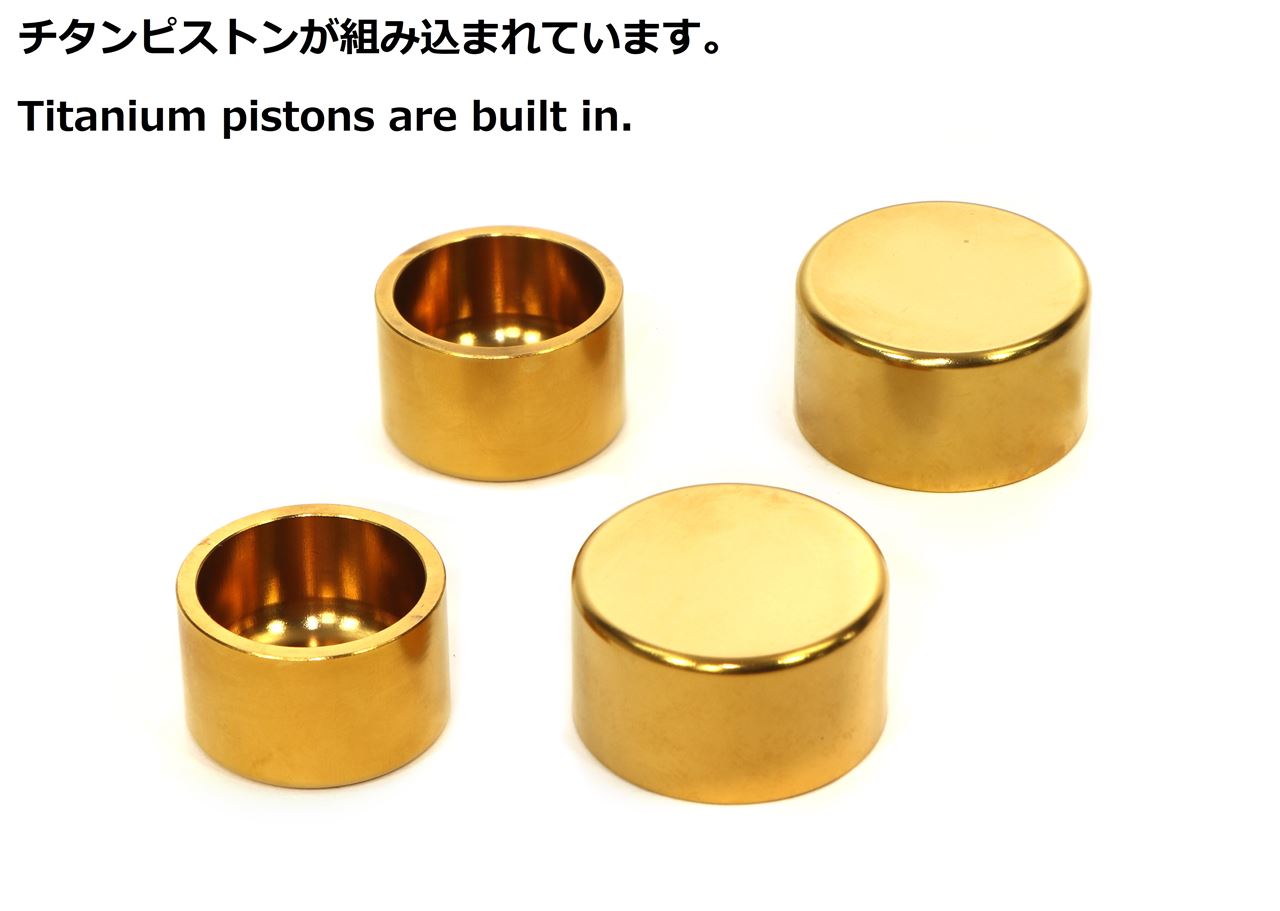

[Titanium Piston Specification]
Compared to aluminum, titanium has lower thermal conductivity, making it harder for heat to transfer to the fluid even when the caliper temperature rises, thus stabilizing the brake feel.
The surface is protected from scratches by a high-hardness, wear-resistant TiN (titanium nitride) coating.

Specifications
Piston: Titanium piston (TiN (titanium nitride) coated) φ34/30
Radial mount (mounting pitch 108mm, offset 22.5mm)
Titanium piston (TiN (titanium nitride) coated)
Bolt pitch: P1.00
Brake pads: Sintered metal material (included)
Compatible disc: φ250~330 (thickness 4.0~6.0mm)
Aluminum (A6061) 2-piece body
12-point bridge bolt
Full 3D machining
Surface treatment: Black hard anodizing
Built-in dust seal, pad spring
Weight: Titanium bolt specification 920g, SCM bolt specification 940g
Color: Black

■Notes on images
*Images are for illustration purposes only. Includes products with different sizes and colors. Product design and specifications are subject to change without notice. Please understand.
