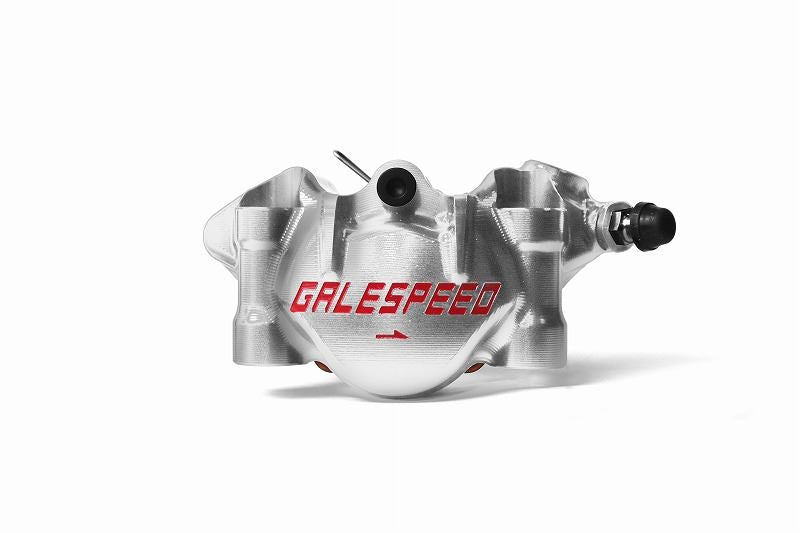

Elaborate Front 2P Radial Caliper φ34 SCM Bolts (Left) Silver

[GALE SPEED GSFCAL34FS Elaborate Front 2P Radial Caliper φ34 SCM Bolt Specification (Left) Silver]
■Product Description
A 2-piston radial mount caliper specialized for small displacement race use, such as Moto3. Forged blank material is 3D machined to achieve performance with functional beauty befitting the name Elaborate.
This custom caliper offers strong braking power, high controllability, and a direct lever feel, differing from the genuine feeling.

Specifications
Piston: Aluminum piston (Kashima Coat) φ34
Radial mount (mounting pitch 60mm, offset 20.5mm)
Bolt pitch: P1.00
Brake pads: Sintered metal material (included)
Compatible disc: φ210-260 (thickness 4.0-6.0mm)
Aluminum (A6061) forged 2-piece body
12-point bridge bolt (with wiring hole)
Full 3D machining
Surface treatment: Hard anodized (black), anodized (silver)
Built-in dust seal, pad spring
Weight: Titanium bolt specification 500g, SCM bolt specification 510g
Color: Silver

■Notes on images
*The image is for illustrative purposes only. It includes products with different sizes and colors. Product design and specifications are subject to change without notice. Please understand.

Precautions
*This is a general-purpose part for racing, so we do not offer various mounting parts.
