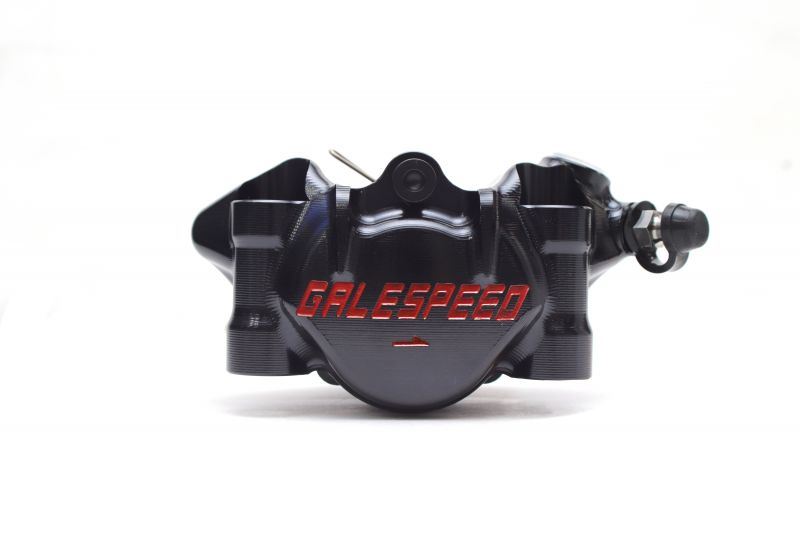

Elaborate Front 2P Radial Caliper φ34 Titanium Bolt/Titanium Piston Specification (Right) Black

【GALESPEED GSFCAR34TTP Elaborate Front 2P Radial Caliper φ34 Titanium Bolt/Titanium Piston (Right) Black】
■Product Description
This 2-piston radial mount caliper is specialized for small displacement race use, such as in Moto3. The forged blank material is 3D machined to create a functional beauty worthy of the name Elaborate.
This custom caliper offers strong braking power, high controllability, and a direct lever feel that differs from the stock feeling.

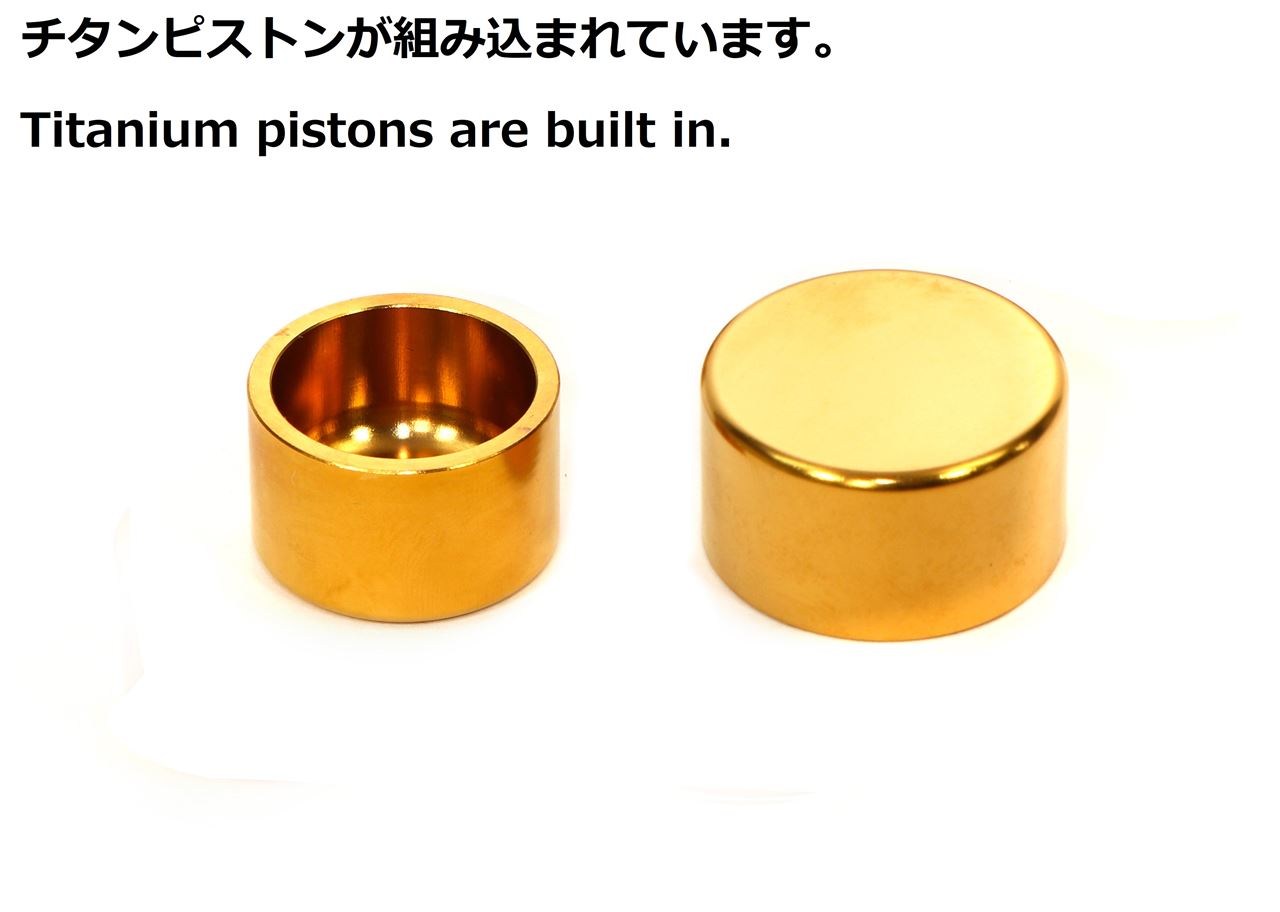

【Titanium Piston Specification】
Compared to aluminum, titanium has lower thermal conductivity, so even if the caliper temperature rises, heat is less likely to transfer to the fluid, resulting in stable brake feel.
The surface is protected from scratches by a highly rigid, wear-resistant TiN (titanium nitride) coating.

Specifications
Piston: Titanium Piston (TiN (titanium nitride) coated) φ34
Radial Mount (Mounting Pitch 60mm, Offset 20.5mm)
Titanium Piston (TiN (titanium nitride) coating)
Bolt Pitch: P1.00
Brake Pads: Sintered Metal (included)
Compatible Disc: φ210～260 (Thickness 4.0～6.0mm)
Aluminum (A6061) Forged 2-Piece Body
12-Point Bridge Bolt
Full 3D Machining
Surface Treatment: Hard Anodized (Black), Anodized (Silver)
Dust Seal, Pad Spring Built-in
Weight: Titanium bolt specification 508g, SCM bolt specification 518g
Color: Black

■Image Notes
※Images are for illustration purposes only. They may include products with different sizes and colors. Product design and specifications are subject to change without notice. Thank you for your understanding.

Precautions
※This is a universal part for racing, so we do not offer various mounting parts.
