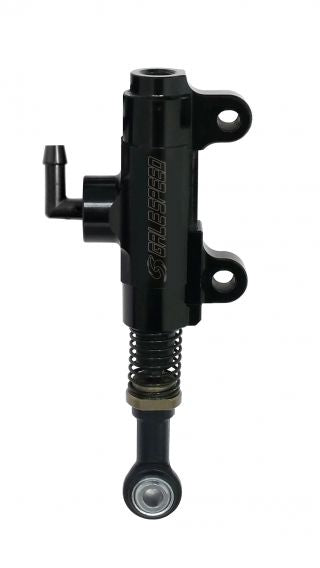

Rear Brake Master φ12 Rod End (M8) Black 40-49mm

【Gale Speed RMC12-840B Rear Brake Master Cylinder φ12 Rod End (M8) Black 40-49mm】
■Black
・When replacing the rear caliper with a Gale Speed or Brembo opposed 2-piston caliper (φ32, φ34), depending on the ratio, the brake pedal's stroke may become too short, making it difficult to control.
・The Gale Speed rear master cylinder is designed with a piston diameter of φ12 to match the lever ratio of typical racing steps. This achieves a delicate and controllable rear brake system.
■Bolt Pitch: P1.00
●The photos may differ from the actual product.
●By inverting the top and bottom of the attaching bracket, it can be used with either a 40mm or 49mm mounting pitch.
Specifications:
・Color: Black
・Piston Size: φ12
・Mounting Pitch / Bolt Size: 40mm or 49mm / M6
・Reservoir: Separate type
・Fluid Nipple (included): φ6, φ7.3 (90°)

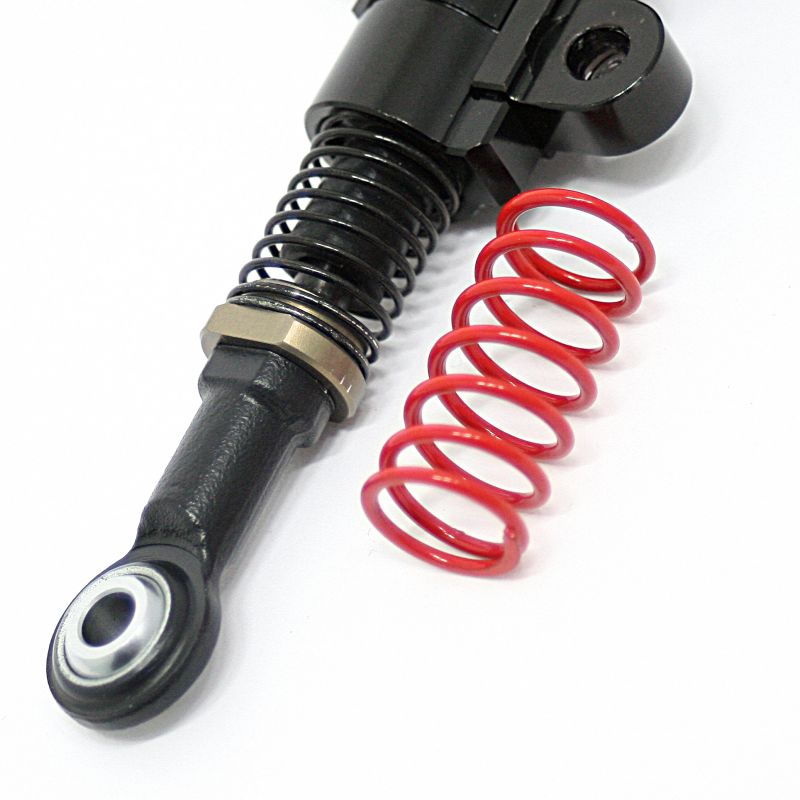

・Return Spring (included): Black (standard), Red (hard)
・Rod End: M8
・Compatible Calipers: Piston diameter φ32/φ34 opposed 2-piston
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please be aware.
