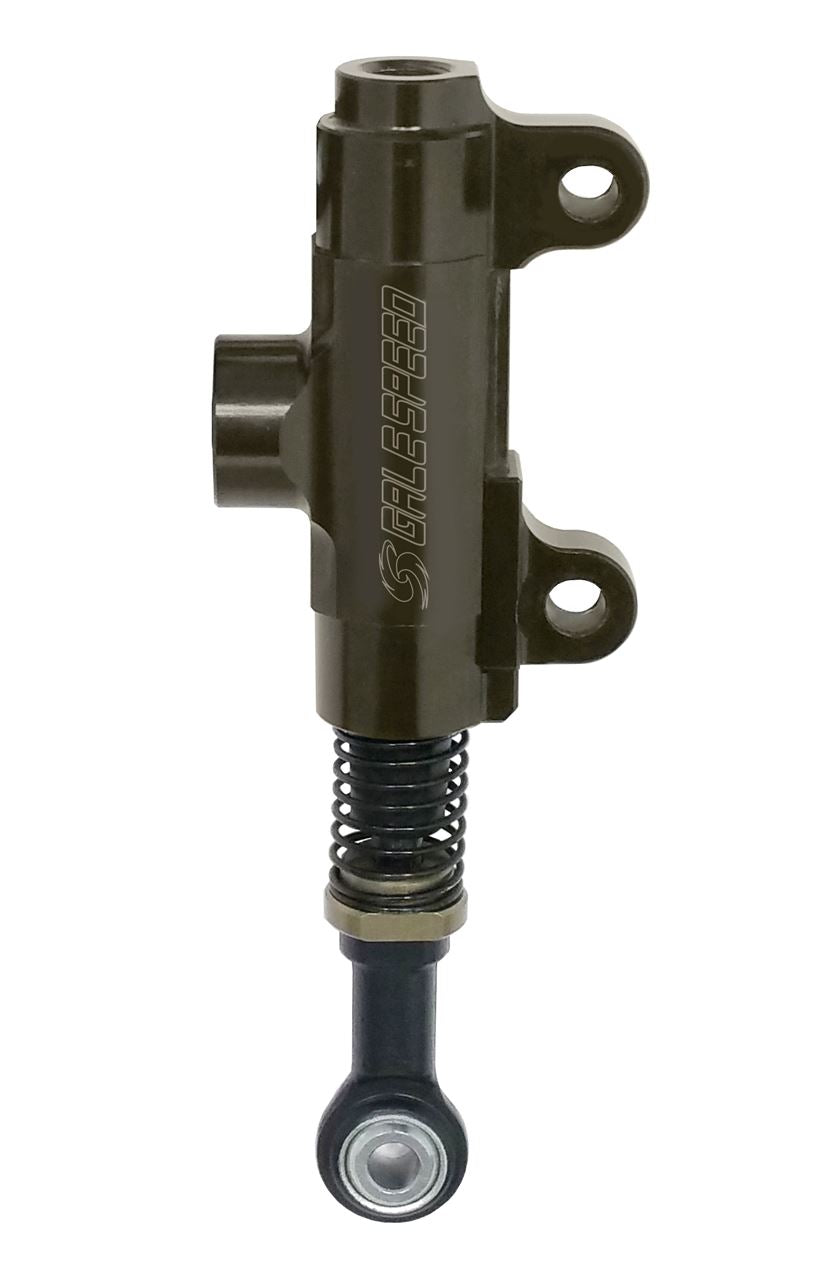

Rear Brake Master Cylinder φ12 Hard Anodized (Mounting Pitch 40 or 49mm / Rod End M6) for Thumb Brake, Black

【GALE SPEED RMC12-TH640HA Rear Brake Master Cylinder φ12 Hard Anodized (Mounting Pitch 40 or 49mm / Rod End M6) for Thumb Brake, Black】
■Product Description

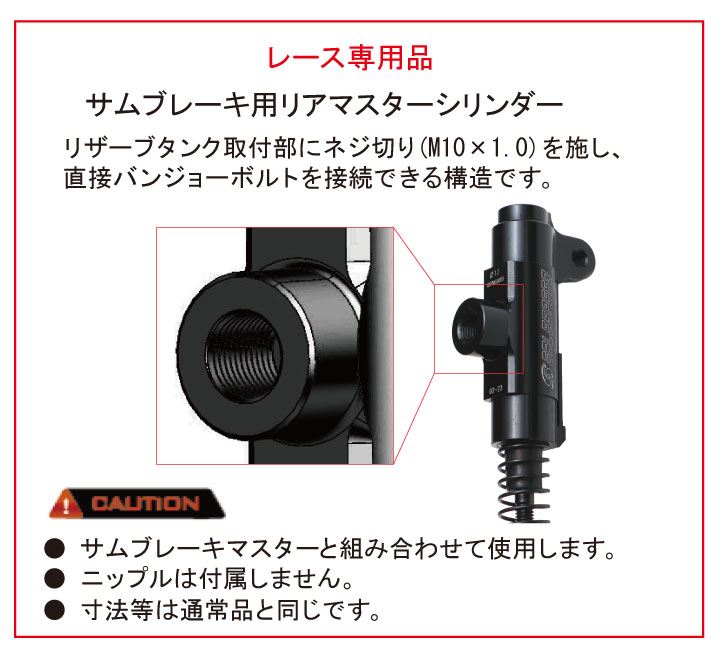

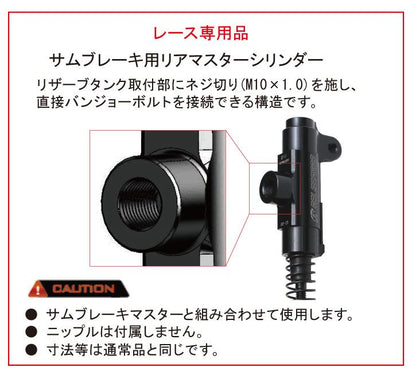

This is a race-specific rear master cylinder designed to prevent fluid leaks by allowing the banjo bolt to be directly tightened into the body's thread, without the need for a hose adapter.
When replacing the rear caliper with a GALE SPEED or Brembo opposed 2-piston caliper (φ32, φ34), depending on the ratio, the brake pedal's stroke may be reduced, making it difficult to control.
The Gale Speed rear master cylinder has a piston diameter of φ12 and is designed to match the leverage ratio of common racing steps. This achieves a delicate and controllable rear brake system.

Specifications
Mounting Pitch/Bolt Size: 40mm or 49mm (M8→M6 conversion spacer included)
Rod End: M6
Piston Size: φ12
Compatible Caliper: Piston diameter φ32/φ34 opposed 2-piston
Bolt Pitch: P1.00
Fluid Tank: Separate type
Return Spring (included): Standard, Hard
Color: Black

■Image Notes
*Images are for illustration purposes only. Products with different sizes and colors may be shown. Product design and specifications are subject to change without notice. Please be aware of this.

Precautions
*The attaching bracket can be swapped upside down to use either a 40mm or 49mm mounting pitch.
*The main body is treated with highly durable "hard anodizing." Unlike general colored anodizing, it features a natural color finish. Therefore, the color tone may vary from the posted photos depending on various conditions.
