TM(RS) Single Carburetor Overhaul Kit for Big Body / 990-692-003
TM(RS) Single Carburetor Overhaul Kit for Big Body / 990-692-003
SKU:ac-tmb-1oh
Regular price
¥3,300
Regular price
¥3,300
Sale price
¥3,300
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Ships in 2-6 business days
配送方法/参考送料:Courier delivery: shipping fee ¥698
33
points to be awarded
Couldn't load pickup availability

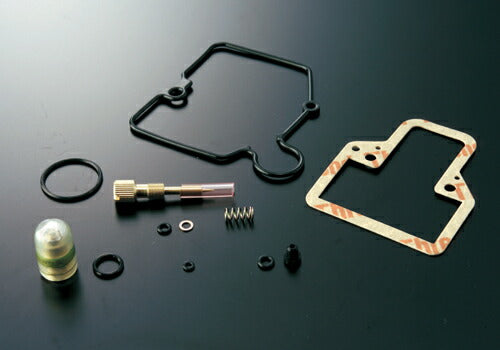

[MIKUNI MIKUNI TMB/1OH TM(RS) Single Carburetor Overhaul Kit for Big Body / 990-692-003]
■For TM(RS) single body
Specifications:
・Carburetor bore: φ36/φ40
Component parts:
(1) Gasket Top Cover (TM36/39) x 1
(2) O-ring Float Chamber (616-94021) x 1
(3) O-ring Drain Bolt (VM28/254) x 1
(4) O-ring Pilot Screw (N133037) x 1
(5) Washer Pilot Screw (VM12/33) x 1
(6) Spring Pilot Screw (N133206) x 1
(7) Pilot Screw (604-26003) x 1
(8) Needle Valve Single (786-36011/3.8) x 1
(9) O-ring Pump Nozzle (N124063) x 1
(10) Plug Pump Nozzle (TM29/14) x 1
(11) O-ring Needle Valve (KV/10) x 1
(12) O-ring Accelerator Adjust (B30/205) x 1
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
■For TM(RS) single body
Specifications:
・Carburetor bore: φ36/φ40
Component parts:
(1) Gasket Top Cover (TM36/39) x 1
(2) O-ring Float Chamber (616-94021) x 1
(3) O-ring Drain Bolt (VM28/254) x 1
(4) O-ring Pilot Screw (N133037) x 1
(5) Washer Pilot Screw (VM12/33) x 1
(6) Spring Pilot Screw (N133206) x 1
(7) Pilot Screw (604-26003) x 1
(8) Needle Valve Single (786-36011/3.8) x 1
(9) O-ring Pump Nozzle (N124063) x 1
(10) Plug Pump Nozzle (TM29/14) x 1
(11) O-ring Needle Valve (KV/10) x 1
(12) O-ring Accelerator Adjust (B30/205) x 1
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
適合車種の情報は現在登録されていません。
