TM(RS) Multi-Carburetor Overhaul Kit for Big Body / 990-692-002-1A

【MIKUNI TMB/4OH TM(RS) Multi-Carburetor Overhaul Kit for Big Body / 990-692-002-1A】
■For TM(RS) Multi / Big Body
Specifications:
・Carburetor bore: φ36/φ38/φ40
Component parts:
(1) Gasket top cover (TM36/39) x 4
(2) O-ring float chamber (616-94020) x 3
(3) O-ring float chamber #2 (616-94021) x 1
(4) O-ring drain bolt (VM28/254) x 4
(5) O-ring pilot screw (N133037) x 4
(6) Washer (pilot screw (VM12/33) x 4
(7) Spring pilot screw (N133206) x 4
(8) Pilot screw (604-26003) x 4
(9) Needle valve multi φ36・φ38・φ40 (N149040-2.8) x 4
(10) O-ring pump nozzle (N124063) x 4
(11) Plug pump nozzle (TM29/14) x 4
(12) O-ring needle valve (KV/10) x 4
(13) Filter needle valve (VM18/233) x 4
(14) O-ring accelerator adjust (B30/205) x 4

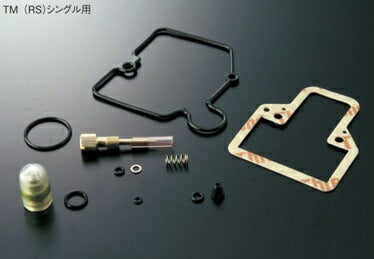

Important notes on images:
*The actual product may differ.
*This image is for a single carburetor.
*The image is for illustrative purposes only, and the design and specifications of the products shown are subject to change without prior notice. Please be aware of this.
