Brake Master Cylinder VRC Clamp Reverse Thread Mirror Holder Lever Ratio 18-16mm φ16 Standard Lever

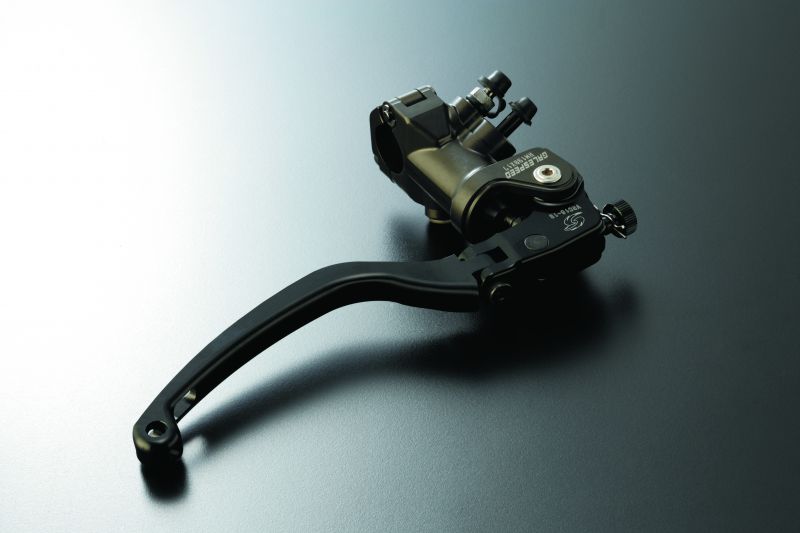

【GALE SPEED VRC16A-17BG Brake Master Cylinder VRC Clamp Reverse Thread Mirror Holder Lever Ratio 18-16mm φ16 Standard Lever】
■Brake Master φ16
・A forged radial master cylinder equipped with our proprietary variable ratio lever. The fulcrum to operating point of the lever can be adjusted in 0.25mm increments up to a maximum of 2mm, allowing for a finer tuning of the brake feel, which was previously determined by the caliper combination.
・Additionally, three types of clamps (four types for brakes) and two lever sizes are available to suit the vehicle and individual rider preferences. By making all combination patterns standard equipment, we reduce the hassle of purchasing optional parts.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluids. (This may cause malfunction or fluid leakage.)
■Bolt Pitch: P1.00
[Round Lever]
・Features a round-shaped lever that allows for a smooth pull with your fingers.
●Photos may differ from the actual product.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluids, as they may cause malfunction or fluid leakage.
●Bolt Pitch: P1.00
●Price is for the master cylinder body only.
●When installing, ensure proper torque management. The tightening torque for the M6 clamp bolt is 12N・m.
●If the measuring point for the vehicle height listed on the vehicle inspection certificate is the master cylinder (mainly the master cup), changes exceeding ±40mm require structural modification procedures.
●The main body and clamp parts are treated with highly durable "hard anodizing." Unlike general colored anodizing, it features a natural color finish. Therefore, the color tone may vary from the posted photos depending on various conditions. We cannot accept returns or exchanges due to color tone. Please be aware.
Specifications:
・Cylinder Diameter: φ16
・Fulcrum to Operating Point: 18-16mm (0.25mm increments)
・Clamp Type: Reverse Thread Mirror Holder
・Lever Size: Standard (Round Type)
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware.
