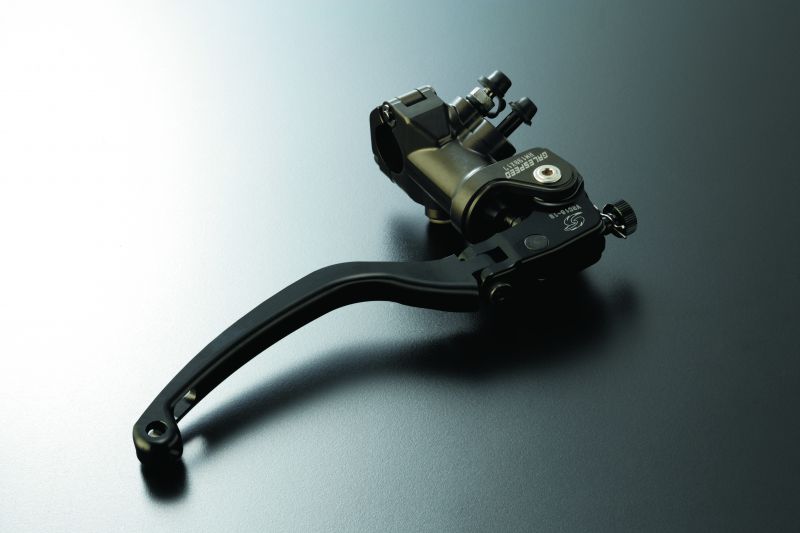

【GALE SPEED VRC17A-17BG Brake Master Cylinder VRC Clamp Reverse Thread Mirror Holder Lever Ratio 18-16mm φ17.5 Standard Lever】
■Brake master φ17.5
・A forged radial master cylinder equipped with a uniquely developed variable ratio lever. The fulcrum to point of action of the lever can be adjusted by 0.25mm increments up to a maximum of 2mm, allowing you to fine-tune the brake feel, which was previously determined by the caliper combination, to a more optimal state.
・Additionally, three clamp types (four for brakes) and two lever sizes are available to suit the vehicle and individual rider preferences. By making all possible combinations standard equipment, the hassle of optional purchases is reduced.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone or mineral-based brake fluid. (This may cause malfunction or fluid leakage.)
■Bolt pitch: P1.00
[Round Lever]
・Uses a round-shaped lever that can be pulled by sliding with a finger.
●Photos may differ from the actual product.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone or mineral-based brake fluid as it may cause malfunction or fluid leakage.
●Bolt pitch: P1.00
●Price is for the master cylinder body only.
●Ensure proper torque management when installing. The M6 clamp bolt installation torque is 12N·m.
●If the measurement point for the vehicle height stated on the vehicle inspection certificate is the master cylinder (mainly the master cup), a change exceeding ±40mm requires a structural modification procedure.
●The main body and clamp parts are treated with highly durable "hard anodizing." Unlike typical colored anodizing, it features a natural color finish. Therefore, the color tone may vary from the posted photos depending on various conditions. We cannot accept returns or exchanges due to color tone. Please understand.
Specifications:
・Cylinder diameter: φ17.5
・Fulcrum to point of action: 18-16mm (0.25mm increments)
・Clamp type: Reverse thread mirror holder
・Lever size: Standard (round type)
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
■Brake master φ17.5
・A forged radial master cylinder equipped with a uniquely developed variable ratio lever. The fulcrum to point of action of the lever can be adjusted by 0.25mm increments up to a maximum of 2mm, allowing you to fine-tune the brake feel, which was previously determined by the caliper combination, to a more optimal state.
・Additionally, three clamp types (four for brakes) and two lever sizes are available to suit the vehicle and individual rider preferences. By making all possible combinations standard equipment, the hassle of optional purchases is reduced.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone or mineral-based brake fluid. (This may cause malfunction or fluid leakage.)
■Bolt pitch: P1.00
[Round Lever]
・Uses a round-shaped lever that can be pulled by sliding with a finger.
●Photos may differ from the actual product.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone or mineral-based brake fluid as it may cause malfunction or fluid leakage.
●Bolt pitch: P1.00
●Price is for the master cylinder body only.
●Ensure proper torque management when installing. The M6 clamp bolt installation torque is 12N·m.
●If the measurement point for the vehicle height stated on the vehicle inspection certificate is the master cylinder (mainly the master cup), a change exceeding ±40mm requires a structural modification procedure.
●The main body and clamp parts are treated with highly durable "hard anodizing." Unlike typical colored anodizing, it features a natural color finish. Therefore, the color tone may vary from the posted photos depending on various conditions. We cannot accept returns or exchanges due to color tone. Please understand.
Specifications:
・Cylinder diameter: φ17.5
・Fulcrum to point of action: 18-16mm (0.25mm increments)
・Clamp type: Reverse thread mirror holder
・Lever size: Standard (round type)
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please understand.
