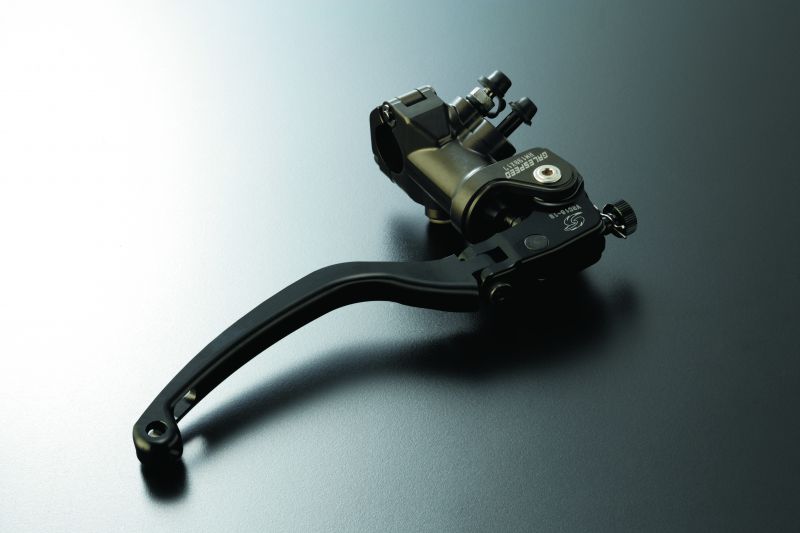

Brake master cylinder VRC clamp tank stay lever ratio 18-16mm φ17.5 short lever

【GALE SPEED VRC17A-17BTS Brake Master Cylinder VRC Clamp Tank Mount Lever Ratio 18-16mm φ17.5 Short Lever】
■Brake Master φ17.5
・A forged radial master cylinder equipped with a uniquely developed variable ratio lever. The fulcrum-to-load point of the lever can be adjusted up to 2mm in 0.25mm increments, allowing you to fine-tune the brake feel, which was previously dependent on the caliper combination, to a more optimal state.
・Additionally, to accommodate different vehicles and individual rider preferences, three types of clamps (four for brakes) and two lever sizes are available. By making all possible combinations standard equipment, the hassle of purchasing optional parts is reduced.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluid. (This may cause malfunction or fluid leakage)
■Bolt Pitch: P1.00
[Round Lever]
・Features a round-shaped lever that allows for a smooth, sliding pull with your finger.
●Photos may differ from the actual product.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluid, as it may cause malfunction or fluid leakage.
●Bolt Pitch: P1.00
●Price is for master cylinder body only.
●Ensure proper torque management when installing. The installation torque for the M6 clamp bolt is 12 N・m.
●If the measurement point for vehicle height listed on the vehicle inspection certificate is the master cylinder (primarily the master cup), changes exceeding ±40mm require structural modification procedures.
●The main body and clamp parts are treated with highly durable "hard anodizing." Unlike general colored anodizing, it features a natural color finish. Therefore, the color tone may vary from the posted photos depending on various conditions. We cannot accept returns or exchanges due to color tone. Please understand.
Specifications:
・Cylinder Diameter: φ17.5
・Fulcrum to Load Point: 18-16mm (in 0.25mm increments)
・Clamp Type: Tank Mount
・Lever Size: Short (Round Type)
Image Notes:
*Photo shows standard lever
*Images are for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
