Clutch Master Cylinder VRC Clamp Mirror Holder Lever Ratio 18-16mm φ17.5 Standard Lever

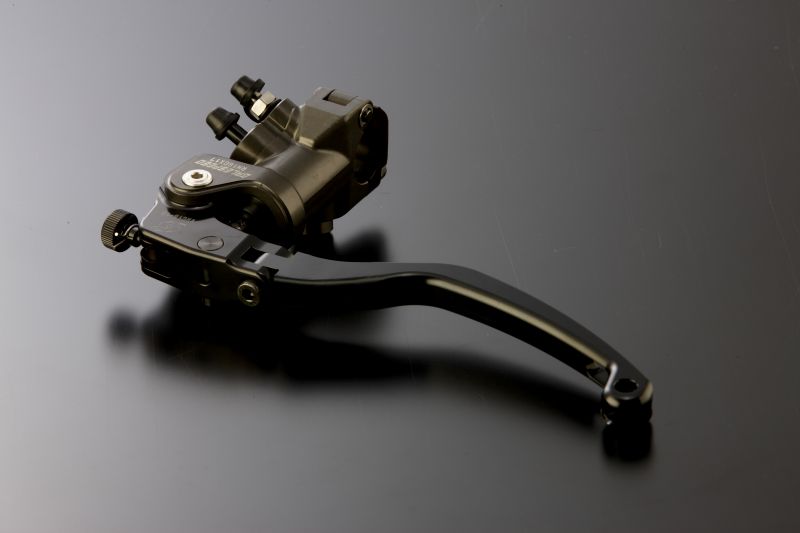

[Galespeed VRC17A-17CM Clutch Master Cylinder VRC Clamp Mirror Holder Lever Ratio 18-16mm φ17.5 Standard Lever]
■Clutch Master φ17.5
・A forged radial master cylinder equipped with a uniquely developed variable ratio lever. The fulcrum to action point of the lever can be adjusted up to 2mm in 0.25mm increments, allowing you to bring the brake feel, which is affected by the combination with the caliper, closer to the best possible state.
・Additionally, three types of clamps (four types for brakes) and two sizes of levers are available to suit the vehicle and individual rider preferences. By making all combination patterns standard equipment, the hassle of purchasing optional parts is reduced.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluid. (This may cause malfunction or fluid leakage)
■Bolt Pitch: P1.00
[Round Lever]
・Uses a round-shaped lever that can be pulled by sliding a finger.
●The photo may differ from the actual product.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluid, as it may cause malfunction or fluid leakage.
●Bolt Pitch: P1.00
●This is the price for the master cylinder body only.
●Ensure proper torque management when installing. The installation torque for the M6 clamp bolt is 12 N・m.
●If the measurement point for the vehicle height on the vehicle inspection certificate is the master cylinder (mainly the master cup), changes exceeding ±40mm require a structural modification procedure.
●The main body and clamp parts are treated with highly durable "hard anodizing." Unlike general colored anodizing, it features a natural color finish. Therefore, the color tone may differ from the posted photos depending on various conditions. Returns or exchanges based on color tone will not be accepted. Please be aware of this.
Specifications:
・Cylinder Diameter: φ17.5
・Fulcrum to Action Point: 18-16mm (in 0.25mm increments)
・Clamp Type: Mirror Holder
・Lever Size: Standard (Round Type)
*The images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware of this.
