Clutch master cylinder VRC clamp tank stay lever ratio 20-18mm φ19 short lever

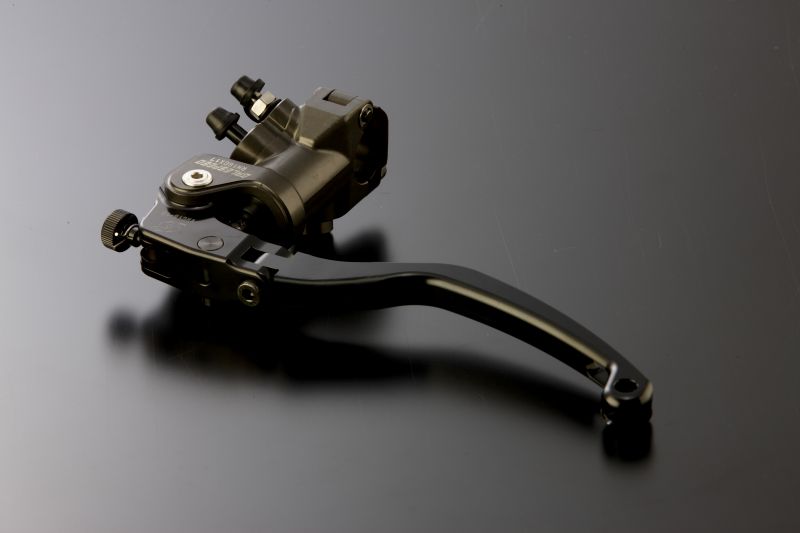

[GALE SPEED VRC19A-19CTS Clutch Master Cylinder VRC Clamp Tank Stay Lever Ratio 20-18mm φ19 Short Lever]
■Clutch Master φ19
・A forged radial master cylinder equipped with a uniquely developed variable ratio lever. The lever's fulcrum to operating point can be adjusted in 0.25mm increments up to a maximum of 2mm, allowing you to achieve the best possible brake feel, which was previously determined by the caliper combination.
・Additionally, three types of clamps (four for brakes) and two sizes of levers are available to suit the vehicle and individual rider preferences. By making all possible combinations standard equipment, the hassle of purchasing optional parts is reduced.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluid. (This may cause malfunction or fluid leakage)
■Bolt Pitch: P1.00
[Round Lever]
・Features a round-shaped lever that can be pulled by sliding with your finger.
●Photos may differ from the actual product.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluid as it may cause malfunction or fluid leakage.
●Bolt Pitch: P1.00
●Price is for the master cylinder body only.
●Ensure proper torque management when installing. The installation torque for the M6 clamp bolt is 12 N・m.
●If the measuring point for the vehicle height listed on the vehicle inspection certificate is the master cylinder (mainly the master cup), changes exceeding ±40mm require structural modification procedures.
●The main body and clamp parts are treated with highly durable "hard anodizing." Unlike general colored anodizing, it is characterized by its naturally occurring color finish. Therefore, the color tone may change from the posted photos depending on various conditions. Returns or exchanges due to color tone are not accepted. Please understand.
Specifications:
・Cylinder Diameter: φ19
・Fulcrum to Operating Point: 20-18mm (0.25mm increments)
・Clamp Type: Tank Stay
・Lever Size: Short (Round Type)
*The image is for illustration purposes only, and the design and specifications of the products shown are subject to change without notice. Please understand.
