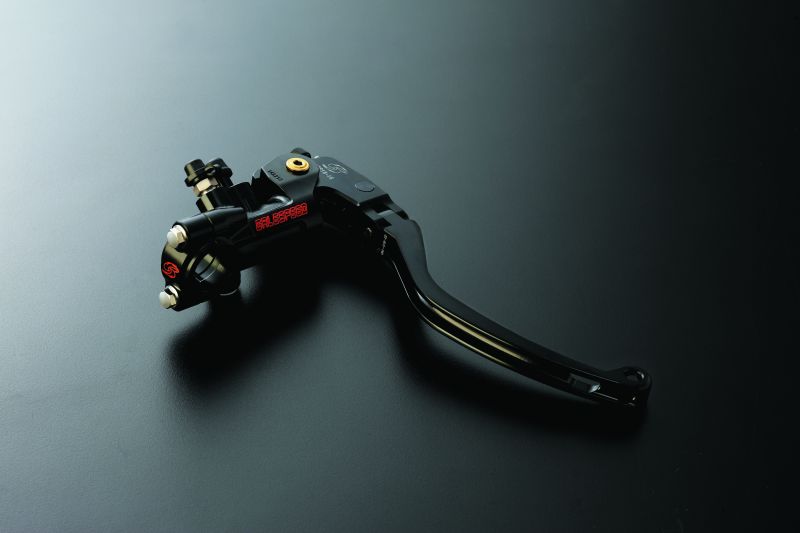

Elaborate Brake Master VRE Clamp Mirror Holder Lever Ratio 18-16mm Black φ14 Short Lever

【GALE SPEED VRE14X-17BMS Elaborate Brake Master VRE Clamp Mirror Holder Lever Ratio 18-16mm Black φ14 Short Lever】
■Brake Master φ14
・We have created a superb master cylinder befitting the word "Elaborate," meaning "to create with precision" and "skillful." Its performance, recognized by numerous racing teams both domestically and internationally, and its outstanding appearance achieved through full 3D machining, are sure to satisfy every rider's desire.
・Equipped with our uniquely developed variable ratio lever. The fulcrum-to-load point of the lever can be adjusted up to 2mm in 0.25mm increments, allowing you to bring the brake feel, which was previously dependent on the caliper combination, closer to its optimal state.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluids. (This may cause malfunction or fluid leakage.)
■Bolt Pitch: P1.00
[Round Lever]
・Features a round-shaped lever that can be pulled by sliding your finger.
●Photos may differ from the actual product.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluids as they may cause malfunction or fluid leakage.
●Bolt Pitch: P1.00
●Price is for the master cylinder body only.
●Ensure proper torque management when installing. The installation torque for the M6 clamp bolt is 12N·m.
●If the measurement point for the vehicle height listed on the vehicle inspection certificate is the master cylinder (mainly the master cup), a change exceeding ±40mm requires a structural modification procedure.
Specifications:
・Color: Black
・Cylinder Diameter: φ14
・Fulcrum-to-Load Point: 18-16mm (0.25mm increments)
・Clamp Type: Mirror Holder
・Lever Size: Short (Round Type)
Notes on images:
*Photos show standard levers
*Images are for illustration purposes, and the design and specifications of the products shown may change without notice. Please be aware of this.
