Elaborate Brake Master VRE Clamp Mirror Holder Lever Ratio 18-16mm Black φ17.5 Short Lever

【GALE SPEED VRE17A-17BMS Elaborate Brake Master VRE Clamp Mirror Holder Lever Ratio 18-16mm Black φ17.5 Short Lever】
■Brake Master φ17.5
・We have created the ultimate master cylinder, worthy of the word "Elaborate," meaning "to create with precision" and "technical." Its performance is recognized by many racing teams both domestically and internationally, and its excellent appearance is achieved through full 3D machining. Everything about it is sure to satisfy the rider's demands.
・Equipped with our uniquely developed variable ratio lever. The fulcrum-to-load point of the lever can be adjusted in 0.25mm increments up to a maximum of 2mm, allowing the brake feel, which was previously determined by the combination with the caliper, to be brought closer to its optimal state.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluid. (This may cause malfunctions or fluid leaks)
■Bolt Pitch: P1.00
[Round Lever]
・Features a round-shaped lever that allows for a smooth pull with your fingers.
●The photo may differ from the actual product.
●Only glycol ether-based brake/clutch fluid can be used. Do not use silicone-based or mineral-based brake fluid as it may cause malfunctions or fluid leaks.
●Bolt Pitch: P1.00
●Price is for master cylinder body only.
●When installing, ensure proper torque management. The installation torque for the M6 clamp bolt is 12 N・m.
●If the measuring point for the vehicle height listed on the vehicle inspection certificate is the master cylinder (mainly the master cup), a change exceeding ±40mm requires a structural change procedure.
Specifications:
・Color: Black
・Cylinder Diameter: φ17.5
・Fulcrum to Load Point: 18-16mm (in 0.25mm increments)
・Clamp Type: Mirror Holder
・Lever Size: Short (Round Type)
Image Notes:

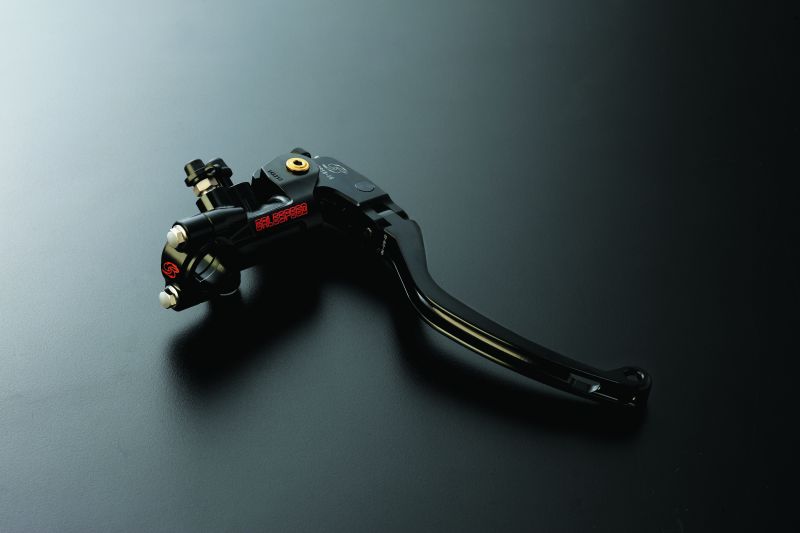

*Photo shows standard lever
*Images are for illustration purposes only, and the design and specifications of the products shown may change without prior notice. Please be aware of this.
